ABB | SKU:
EMN-018180

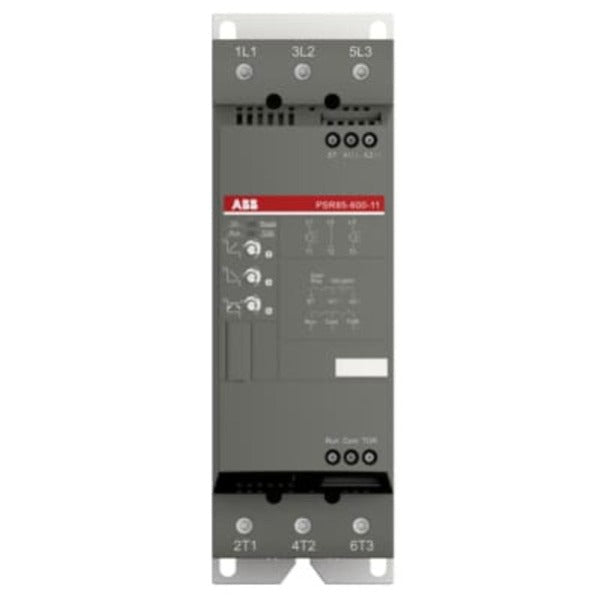

PSR85-600-11, ABB, Softstarter, 85A, 208-600 VAC, Control supply 24V,
Regular price
$2,039.74
Unit price
/
Unavailable
PSR85-600-11, ABB, Softstarter, 85A, 208-600 VAC, Control supply 24V, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
PSR85-600-11, ABB, Softstarter, 85A, 208-600 VAC, Control supply 24V,
Regular price
$2,039.74
Unit price
/
Unavailable
Description
Description
PSR85-600-11,Soft Starter, ABB
| Specifications | |
|---|---|
| Rated Operational Voltage | 208-600 V AC |
| Rated Control Supply Voltage (Us) | 24 V AC/DC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz |
| Main Circuit | 50/60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 22 kW<br>(400 V) 45 kW<br>(500 V) 55 kW |
| Rated Operational Current - In-Line Connection (Ie) | 85 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS495 70-90 |
| Integrated Electronic Overload | No |
| Adjustable Rated Motor Current Ie | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0-20 second [unit of time]<br>1 ... 10 second [unit of time] |
| Initial Voltage During Start | 40-70 % |
| Step Down Voltage Special Ramp | 100-60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug (Optional) |
| Degree of Protection | IP10 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Rigid 1x 6 ... 95 mm²<br>Rigid 2 x 6 ... 35 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm²<br>2 x 0.75 ... 2.5 mm²<br>Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 mm² |
| Tightening Torque | Control Circuit 0.6 N·m<br>Main Circuit 8 N·m<br>Supply Circuit 0.6 N·m |
| Product Main Type | PSR85 |
| Function | Soft start with voltage ramp<br>Soft stop with voltage ramp |
