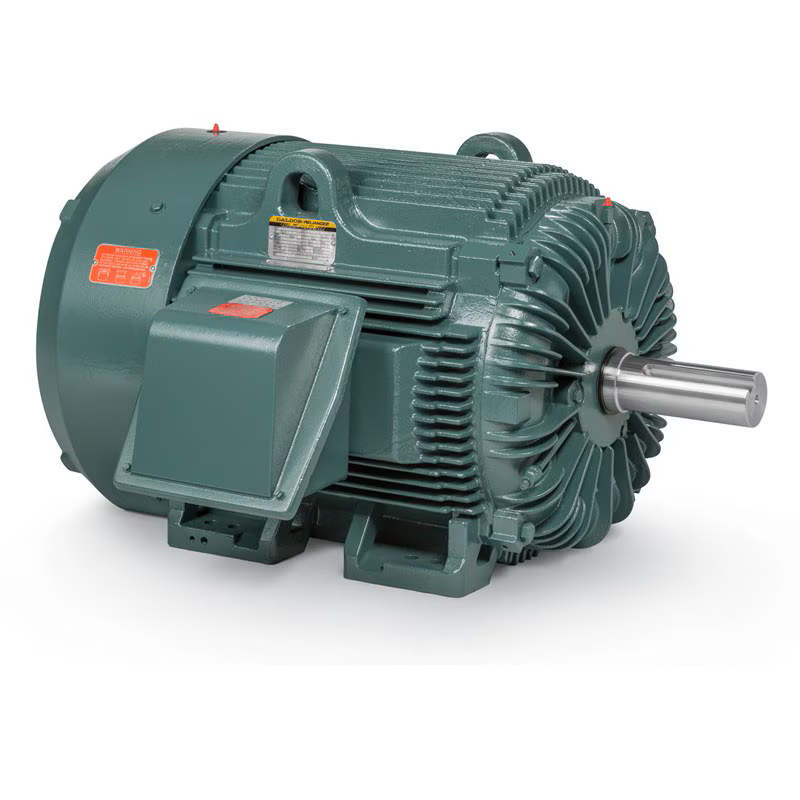

ECP3661T-4, Severe Duty Motors, 3Hp, 1755 RPM, 460V, 3Ph, 60Hz, Frame 182T, TEFC, F1, 06H483X240G2

ECP3661T-4, Severe Duty Motors, 3Hp, 1755 RPM, 460V, 3Ph, 60Hz, Frame 182T, TEFC, F1, 06H483X240G2

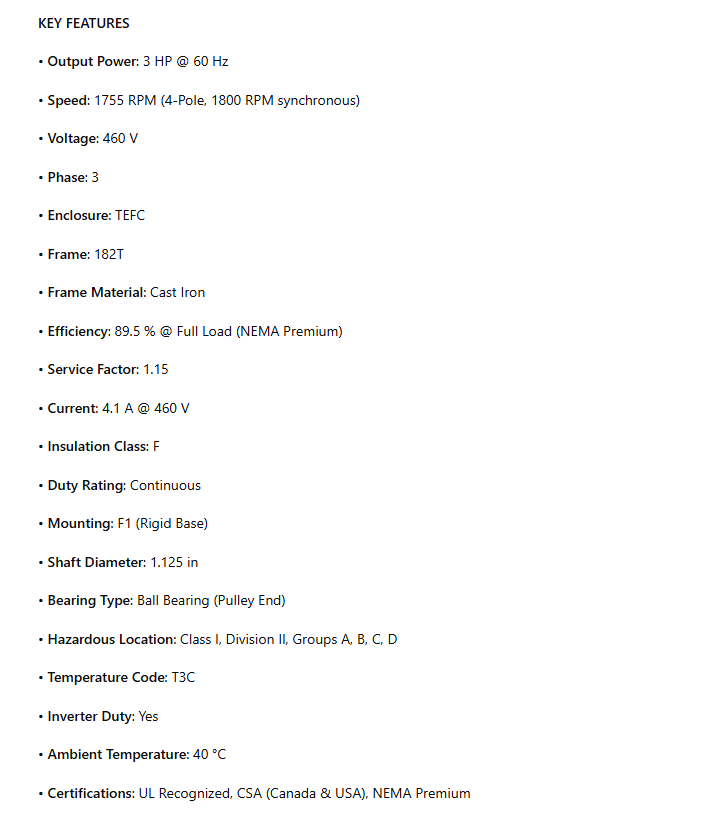

KEY FEATURES

• Output Power: 3 HP @ 60 Hz

• Speed: 1755 RPM (4-Pole, 1800 RPM synchronous)

• Voltage: 460 V

• Phase: 3

• Enclosure: TEFC

• Frame: 182T

• Frame Material: Cast Iron

• Efficiency: 89.5 % @ Full Load (NEMA Premium)

• Service Factor: 1.15

• Current: 4.1 A @ 460 V

• Insulation Class: F

• Duty Rating: Continuous

• Mounting: F1 (Rigid Base)

• Shaft Diameter: 1.125 in

• Bearing Type: Ball Bearing (Pulley End)

• Hazardous Location: Class I, Division II, Groups A, B, C, D

• Temperature Code: T3C

• Inverter Duty: Yes

• Ambient Temperature: 40 °C

• Certifications: UL Recognized, CSA (Canada & USA), NEMA Premium
