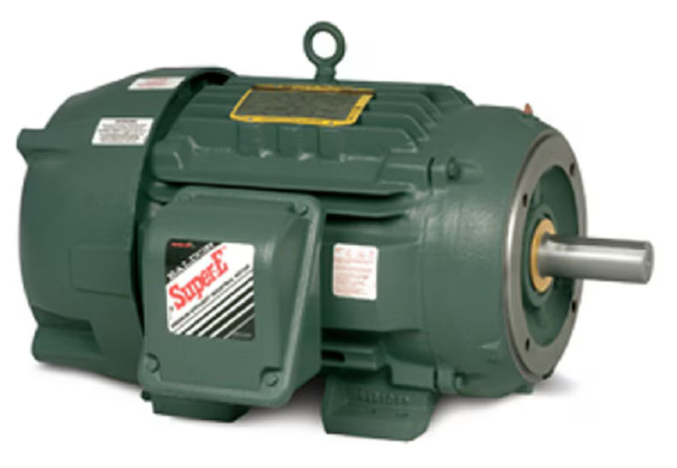

CECP83774T-4, 10Hp, 1760RPM, 460V, 3PH, 60HZ, Frame 215TC, 0748M, TEFC, F

CECP83774T-4, 10Hp, 1760RPM, 460V, 3PH, 60HZ, Frame 215TC, 0748M, TEFC, F

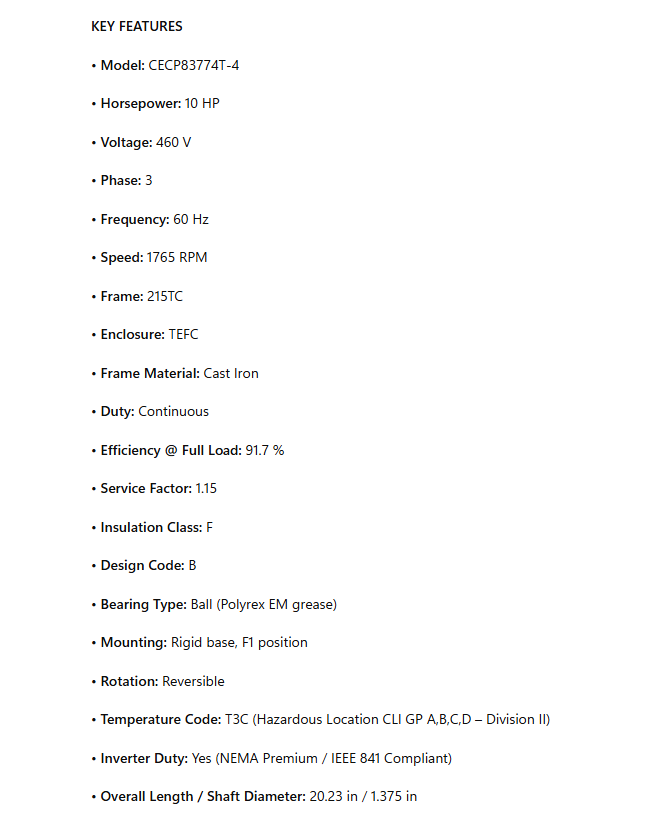

KEY FEATURES

• Model: CECP83774T-4

• Horsepower: 10 HP

• Voltage: 460 V

• Phase: 3

• Frequency: 60 Hz

• Speed: 1765 RPM

• Frame: 215TC

• Enclosure: TEFC

• Frame Material: Cast Iron

• Duty: Continuous

• Efficiency @ Full Load: 91.7 %

• Service Factor: 1.15

• Insulation Class: F

• Design Code: B

• Bearing Type: Ball (Polyrex EM grease)

• Mounting: Rigid base, F1 position

• Rotation: Reversible

• Temperature Code: T3C (Hazardous Location CLI GP A,B,C,D – Division II)

• Inverter Duty: Yes (NEMA Premium / IEEE 841 Compliant)

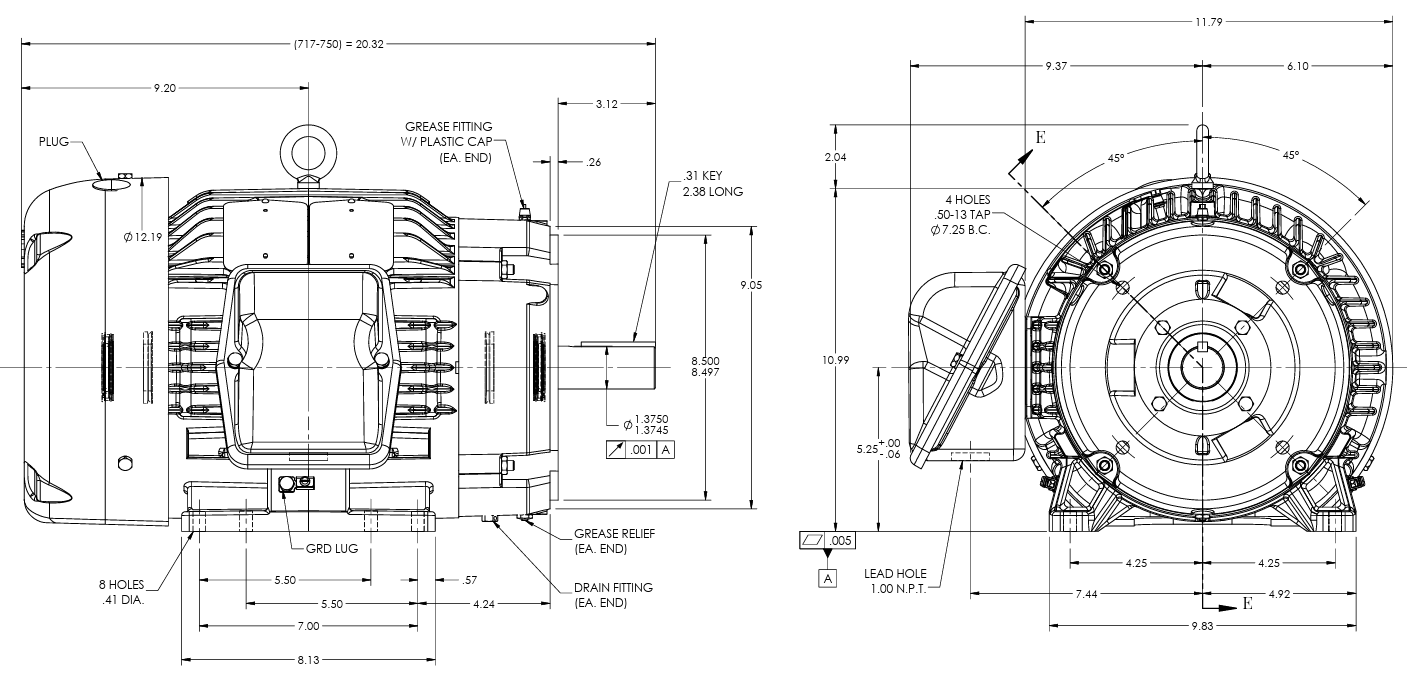

• Overall Length / Shaft Diameter: 20.23 in / 1.375 in
