Groove Gear  |  SKU: EMN-018275

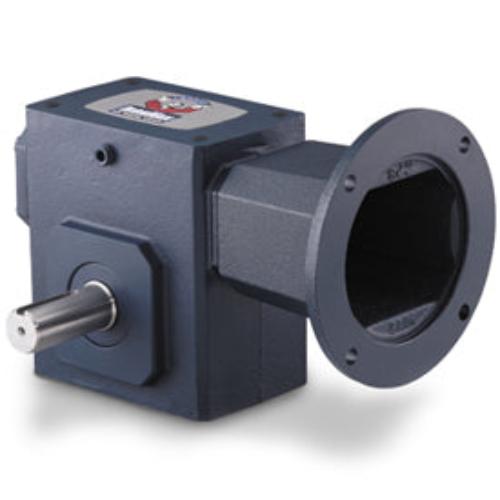

GR-BMQ813-10-L-56, Gear Box, Cast Iron 800 Worm Gear Reducers,

$1,139.14
shipping

Estimate shipping

Description

GR-BMQ813-10-L-56, GR8150183.00, Grove Gear,

Category Specification
Mounting Style Base
Series Style GR-BMQ-L
Overhung Load 700 lb
Frame Size 56C
Output HP 0.729 HP
Output Shaft Assembly Code L
Input HP 0.823 HP
Output Key 3/16 x 1.50
Keyway 3/16 x 3/32
Input Style C-Face Quill
Output Shaft Orientation Left (L)
No. of Gear Reductions Single
Reducer Style Worm - Right Angle
Series Code GR
Input RPM 1,750 RPM
Output Style Left (L)
Output RPM 175 RPM
Series Type Cast Iron 800 Worm Gear Reducers
Model Code BMQ813
Output Diameter 0.625 in
Service Factor 1
Input Quill Diameter 0.625 in
Thrust Rating (Output Shaft) 1070 lb
Gear Type Worm
Ratio 10:1
Shaft Seal Material Viton
Input HP @ 1750 RPM 0.823 HP
Series GR Series - Ironman Worm Gear Reducers
Assembly BMQ-L
Input Diameter 0.625 in
Input Bore (C Face) 0.625 in
Center Distance 1.33 in
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Worm Speed Reducer
Ratio Range 10:1
Input Keyway (C Face) 3/16 x 3/32
Motor Frame Size 56C
Reduction Single
Output Shaft Direction Left

Overhung Load Rating(Output Shaft)

 700 lb
Output Torque Rating 263 in-lb
Housing Material Cast Iron
Output Shaft Solid Shaft
