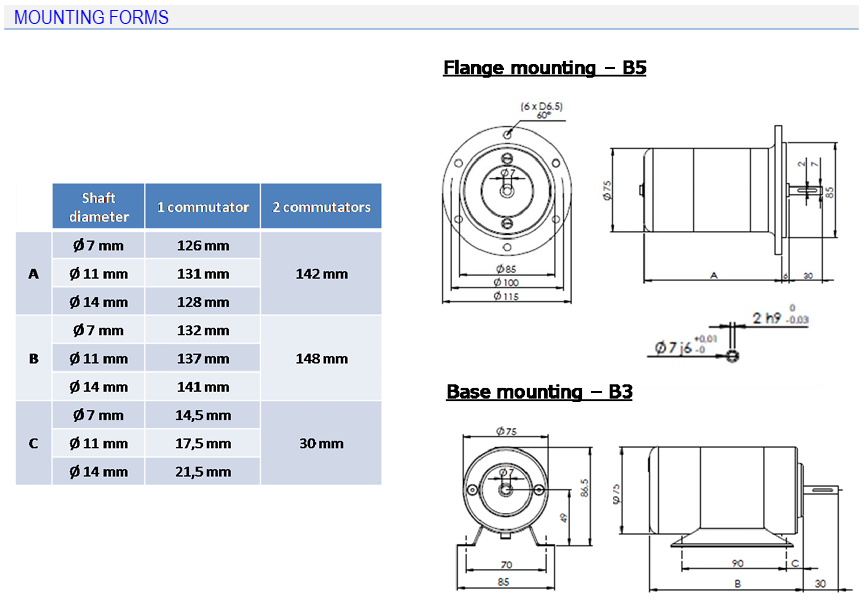

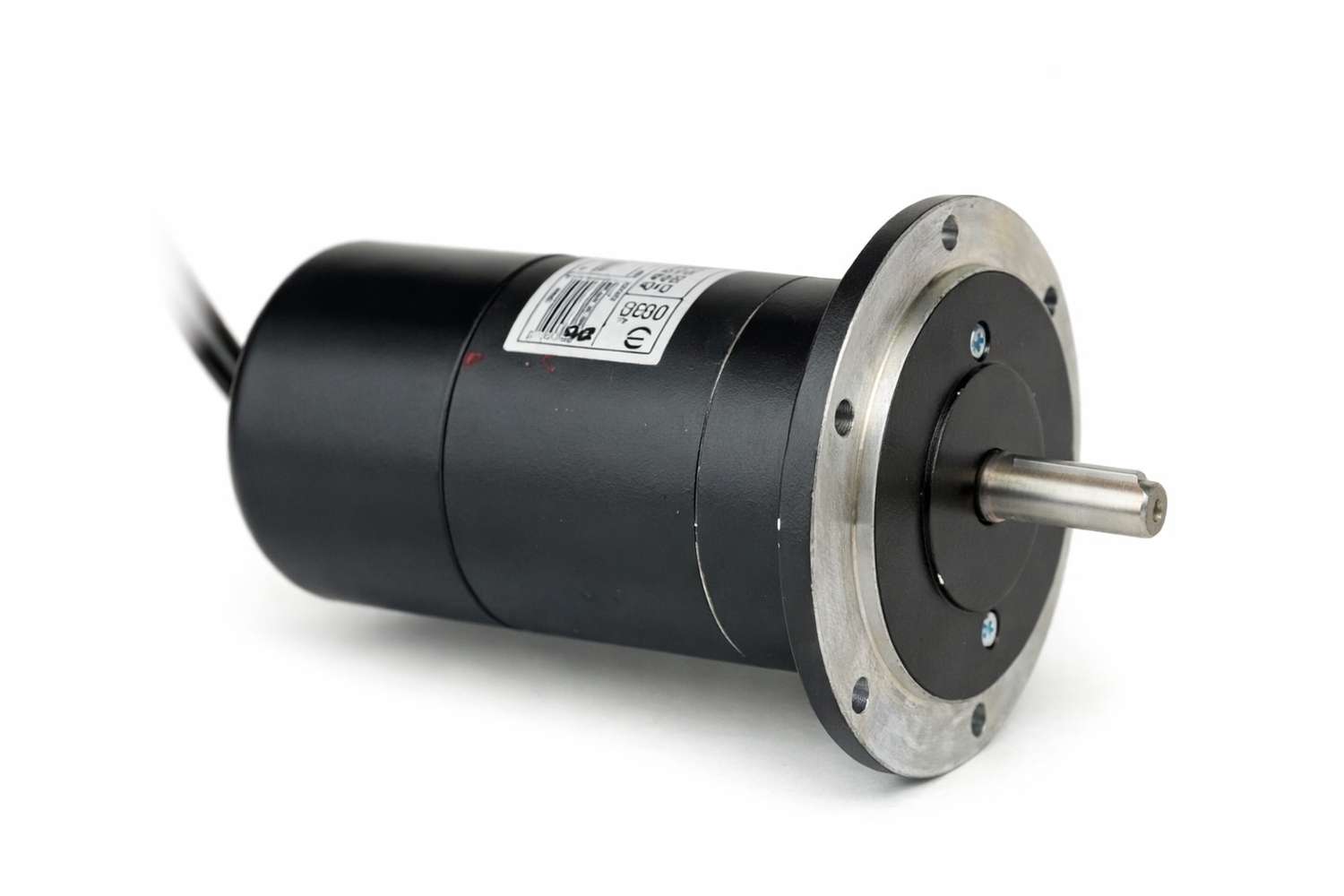

RE.0444N, RE.0444N S C1x60 CA IP44 Ex19, Tacho IP44, Foot Mount, 60V, Ex19mm Shaft ,

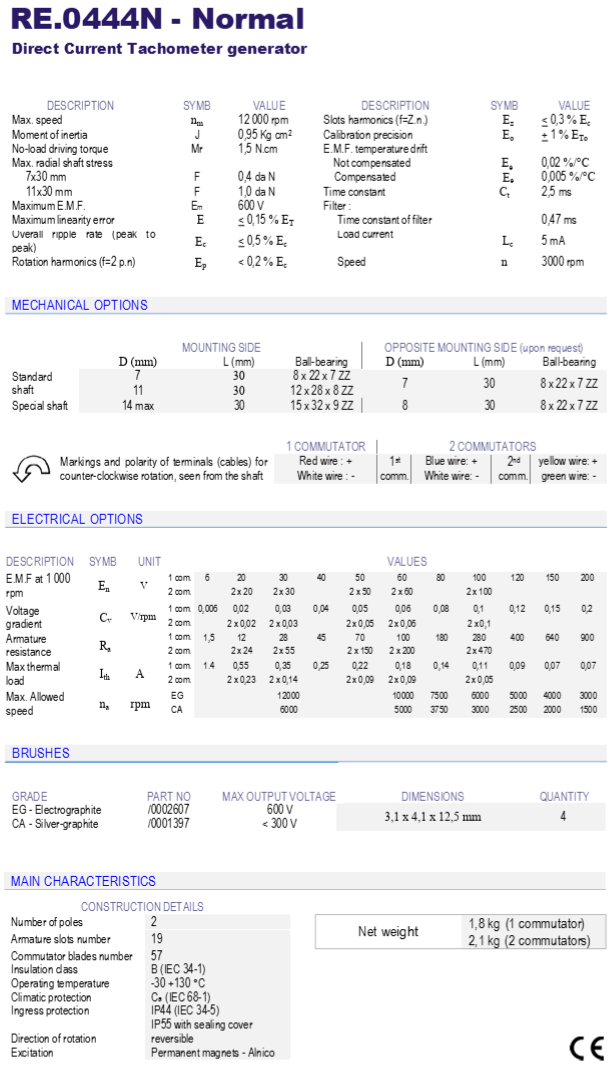

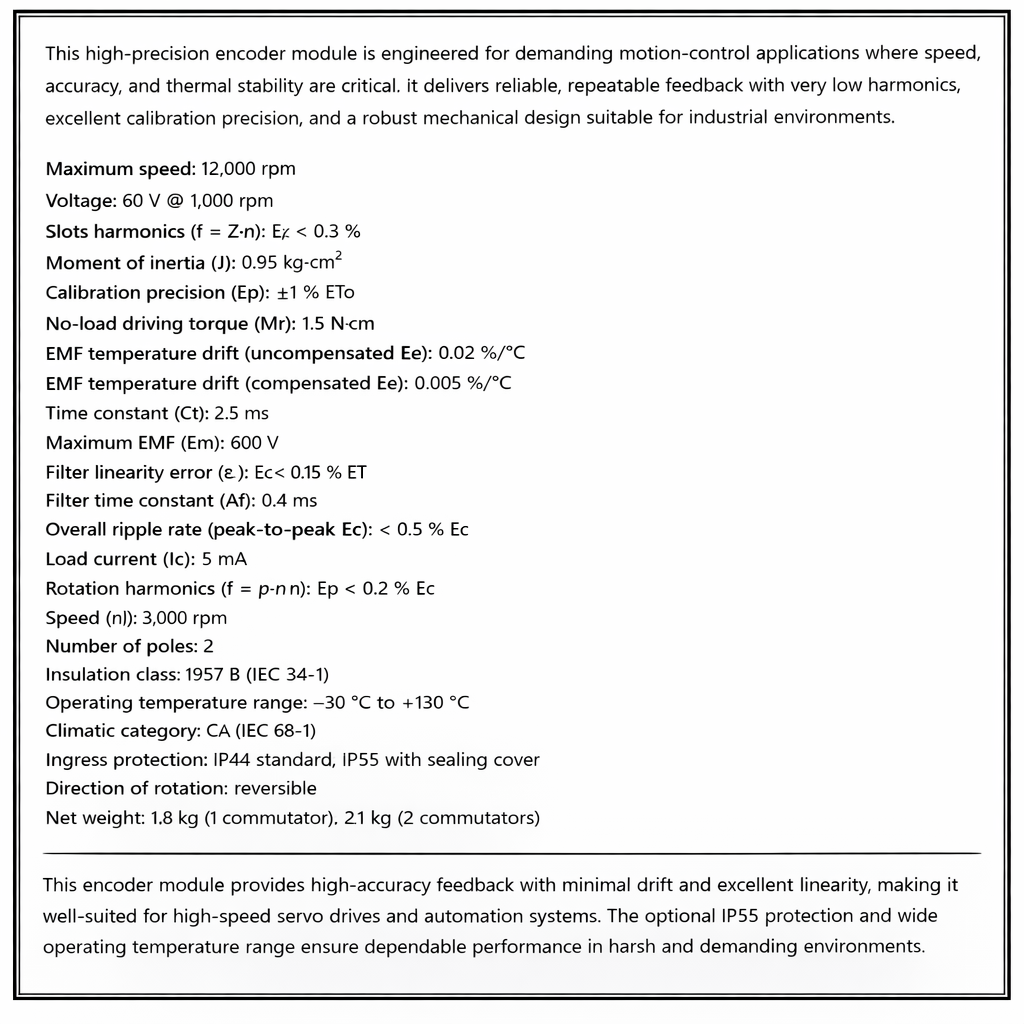

This high‑precision encoder module is designed for demanding motion control applications, offering exceptional speed capability, calibration accuracy, and thermal stability. It delivers reliable performance with low harmonics and robust mechanical construction.

• Maximum speed: 12 000 rpm
• Voltage : 60V @ 1000 RPM
• Slots harmonics (f=Z·n): Ez < 0.3 %
• Moment of inertia (J): 0.95 kg·cm²
• Calibration precision (Eo): ±1 % ETo
• No‑load driving torque (Mr): 1.5 N·cm
• EMF temperature drift (uncompensated Ee): 0.02 %/°C
• EMF temperature drift (compensated Ee): 0.005 %/°C
• Time constant (Ct): 2.5 ms
• Maximum EMF (Em): 600 V
• Filter linearity error (E<): < 0.15 % ET
• Filter time constant: 0.47 ms
• Overall ripple rate (peak‑to‑peak Ec): < 0.5 % Ec
• Load current (Lc): 5 mA
• Rotation harmonics (f=2 p·n) Ep: < 0.2 % Ec
• Speed (n): 3 000 rpm
• Number of poles: 2
• Insulation class: 19 57 B (IEC 34‑1)
• Operating temperature: –30 °C to +130 °C
• Climatic category: Ca (IEC 68‑1)
• Ingress protection: IP44 standard, IP55 with sealing cover
• Direction of rotation: reversible
• Excitation: permanent magnets
• Net weight: 1.8 kg (1 commutator), 2.1 kg (2 commutators)

This encoder module provides precise feedback with minimal drift and high linearity, making it ideal for high-speed, high-accuracy servo and automation systems. Its robust IP55 option and wide temperature range enhance reliability in harsh environments.
