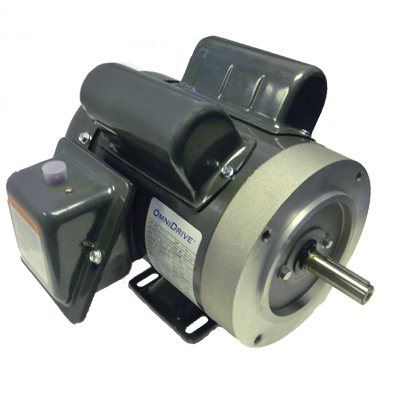

FD162C, 1/2 HP, 1800 RPM, 115 VOLTS , FRAME 56C, TEFC,OMNIDRIVE

OMNIDRIVE

$367.04

FD162C, OMNIDRIVE MOTOR

REPLACE F102 MARATHON ELECTRIC, MTR-124FDC MAXMOTION, FDL3504M BALDOR, FD12CM2P US MOTORS, C311 CENTURY/ AO SMITH, 102906.00 LEESON

HP	1/2
VOLTAGE	115-208/230
AMPS	5.80/3.00
RPM	1725
FREQUENCY	60 HZ
LENGTH	12.00”
ENCLOSURE	TEFC
SHAFT DIAMETER	5/8''
TYPE	FARM DUTY CAPCACITOR START
SPEED	1
DIAMETER	6,5''
FRAME	56C
BEARING SLEEVE	BEARING
ROTATION	REVERSIBLE
PROTECTOR	THERMALLY PROTECTED
PHASE	1
AMBIENT TEMP	40 C

FEATURE(S)	Rolled Steel Construction, Class ‘B’ Insulation, Continuous Duty, UL Listed & CSA Approved, Removable Rigid Base, FD162C
