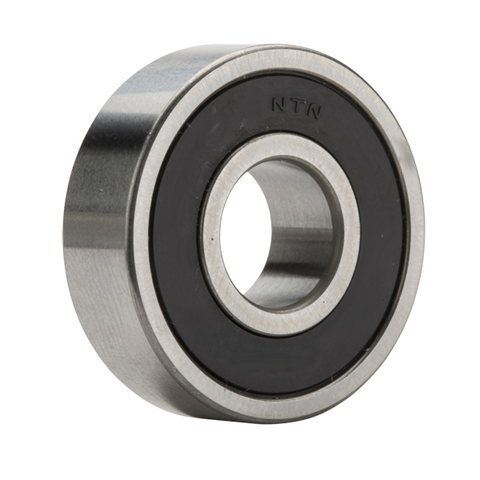

6205LLB/C3, Bearing NTN, Premium Ball Bearing electric motor, Single Row Radial Ball Bearing,

NTN BEARING

$32.14

6205LLB/C3, NTN, Electric motor Bearing, Premium

Round Bore
Deep Groove Ball Bearing
25 mm Inside Diameter
52 mm Outside Diameter
15 mm Width

SPECIFICATIONS

SEAL TYPE	Non-Contact Non-Contact Seals
WEIGHT	0.28 lbs
LUBRICANT	Polyrex EM
ROWS OF BALLS	Single
BALL MATERIAL	Steel
PRECISION LEVEL	ISO Class 0
TEMPERATURE RANGE [MAX]	250 °F
LIMITING SPEED - GREASE	13000 rpm
DYNAMIC LOAD RATING	3150 lbf
STATIC LOAD RATING [MAX]	1760 lbf
BEARING TYPE	Deep Groove Ball Bearing Radial Ball Bearing
BORE TYPE	Round Bore
ENCLOSURE	Double Sealed
NO. IN SET	Single Bearing
MATERIAL	High Carbon Chrome High Carbon Chrome Steel
FACTOR	13.9
OUTER RING WIDTH	0.5906 in 15 in
PRE LUBRICANT	Polyrex EM

TEMPERATURE RANGE [MIN]	-40 °F
WIDTH	0.5906 in 15 in
INNER RING WIDTH	15 mm
ORIGIN	Single Row Radial
O.D.	52 mm
FILLET RADIUS	1 mm
I.D.	25 mm
CAGE TYPE	Metal
O.D. TYPE	Straight
RADIAL INTERNAL CLEARANCE	C3
SNAP RING	No Snap Ring
RADIAL INTERNAL CLEARANCE SPECIFICATION	Greater than Normal
INCH/METRIC	Inch Metric Metric Bore
LIMITING SPEED	15000 rpm
SEAL MATERIAL	Rubber Nitrile Rubber
WEIGHT	0.28 LB
PACKAGE QUANTITY	1.0 Piece
EAN OR UPC	4547359563009
