US Motors - Nidec  |  SKU: EMN-018223

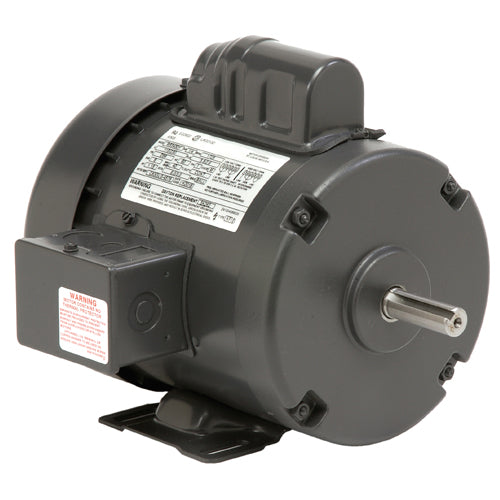

T3C1P18, Us Motors, 3Hp, 3600 Rpm, 115-230 Volts, Frame:182T,Enc:TEFC,

$923.54
shipping

Estimate shipping

Description

T3C1P18, AF82, Us Motors, I113, Marathon,184TCDR7026,

Nameplate Specifications

Phase: 1 Output HP: 3 Hp
Output KW: 2.2 kW Voltage: 115/208-230 V
Speed: 1758 rpm Service Factor: 1.15
Frame: 184T Enclosure: Drip Proof
Thermal Protection: No Protection Efficiency: 77.4 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 33.0/17.7-16.5 A Power Factor: 76.2
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: J
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 15.29 in
Frame Length: 8.25 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 ONLY

• Double Shielded Ball Bearings

• Class B Insulation

• Continuous Duty

• 40°C Ambient

• Capacitor Start, Induction Run

• F1 Assembly

• Reversible Rotation
