MAX MOTION  |  SKU: EMN-019031

MQR-134CH, Maxmotion, 1/3Hp, 1800 RPM, 230/460V, Fr:56C, TEFC, REMOVABLE BASE

$259.81
shipping

Estimate shipping

Description

MQR-134CH, MAXMOTION

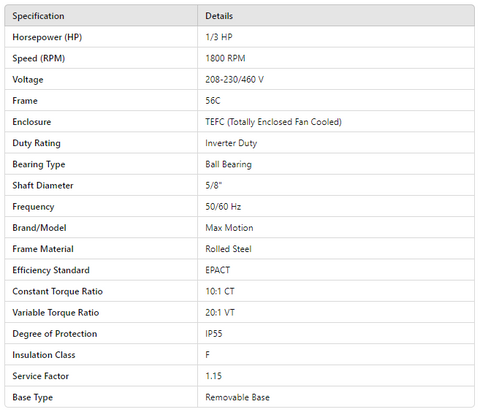

Specification Details
Horsepower (HP) 1/3 HP
Speed (RPM) 1800 RPM
Voltage 208-230/460 V
Frame 56C
Enclosure TEFC (Totally Enclosed Fan Cooled)
Duty Rating Inverter Duty
Bearing Type Ball Bearing
Shaft Diameter 5/8"
Frequency 50/60 Hz
Brand/Model Max Motion
Frame Material Rolled Steel
Efficiency Standard EPACT
Constant Torque Ratio 10:1 CT
Variable Torque Ratio 20:1 VT
Degree of Protection IP55
Insulation Class F
Service Factor 1.15
Base Type Removable Base
