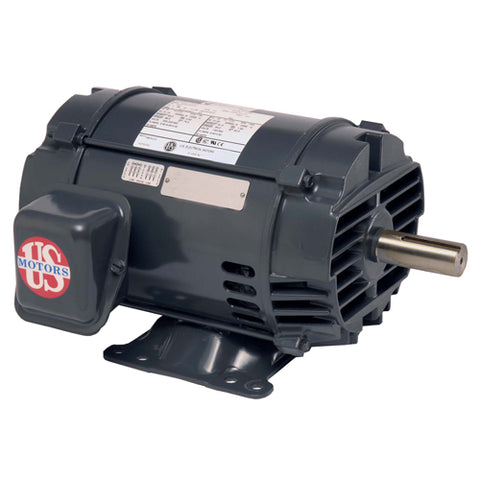

D2P2G, FC94, Nidec, 2 Hp, 1740 Rpm, 575V, Frame: 145, Enclosure: ODP,
D2P2G, FC94, Nidec
| Specification | Details |
|---|---|
| Phase Type | 3 Phase |
| Motor Enclosure | ODP |
| Horsepower (HP) | 2 |
| Kilowatts (kW) | 1.5 |
| Poles | 4 |
| Number of Speeds | 1 |
| RPM | 1740 |
| Hertz | 60 |
| Volts (Primary) | 575 |
| Volts | 575 |
| Frame | 145 |
| Shaft Code | T |
| Mounting | Horizontal, Footed (HORZ-FOOTED) |
| Assembly Position | F1 |
| Motor Type | DE |
| Opposite End Bearing | 6203-2Z-J/C3 |
| Shaft End Bearing | 6205-2Z-J/C3 |
| Ambient Temperature | 40°C |
| Service Factor | 1.15 |
| Start Capacitor (MFD) | N/A |
| Breakdown Torque | 455% of Full Load Torque (FLT) |
| Locked Rotor Torque | 372% of Full Load Torque (FLT) |
| Insulation Class | F |
| KVA Code Letter | L |
| Locked Rotor Amps | 18.7 |
| NEMA Nominal Efficiency | 86.5% |
| Full Load Amps (Primary) | 2.2 |
| Service Factor Amps (Primary) | 2.5 |
