AGH15FL2CS, 1.5Hp, ODP, 3450 RPM, 230V , 1 Ph , Frame 48Y, C055JKY4534013J

AGH15FL2CS, 1.5Hp, ODP, 3450 RPM, 230V , 1 Ph , Frame 48Y, C055JKY4534013J

replace: AO SMITH , BN34, BN34V1, CENTURY, SPA MOTOR PUMP

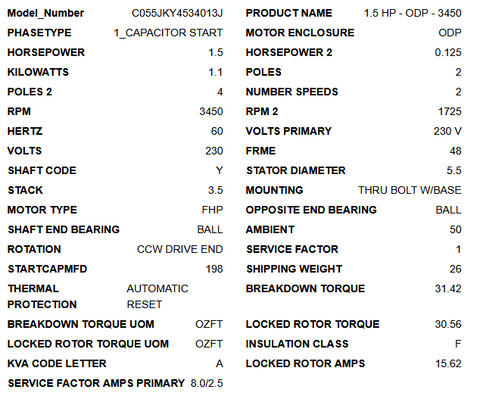

• Model Number: C055JKY4534013J

• Motor Type: FHP, Capacitor Start

• Horsepower: 1.5 HP (High) / 0.125 HP (Low)

• Speeds: 2-Speed – 3450 RPM / 1725 RPM

• Voltage: 230 V

• Phase: Single Phase

• Frequency: 60 Hz

• Frame: 48Y

• Mounting: Thru-bolt with base

• Enclosure: ODP (Open Drip Proof)

• Shaft: Code Y, Ball Bearings (both ends)

• Rotation: CCW (Drive End)

• Service Factor: 1.0

• Thermal Protection: Automatic Reset

• Ambient Temp: 50°C

• Insulation Class: F

• KVA Code: A

• Start Capacitance: 198 MFD

• Torque (Breakdown/Locked Rotor): 31.42 / 30.56 oz-ft

• Amps (Running/Locked Rotor): 8.0 / 15.62 A

• Shaft Size & Stack: 5.5" stator dia, 3.5" stack

• Shipping Weight: 26 lbs
