MTR-342FDJH, 3/4Hp, 3520 RPM, 115/230V, 1PH, 60/50Hz, TEFC, Frame 56J, IP55, AUTO OVERLOAD

MTR-342FDJH, 3/4Hp, 3520 RPM, 115/230V, 1PH, 60/50Hz, TEFC, Frame 56J, IP55, AUTO OVERLOAD

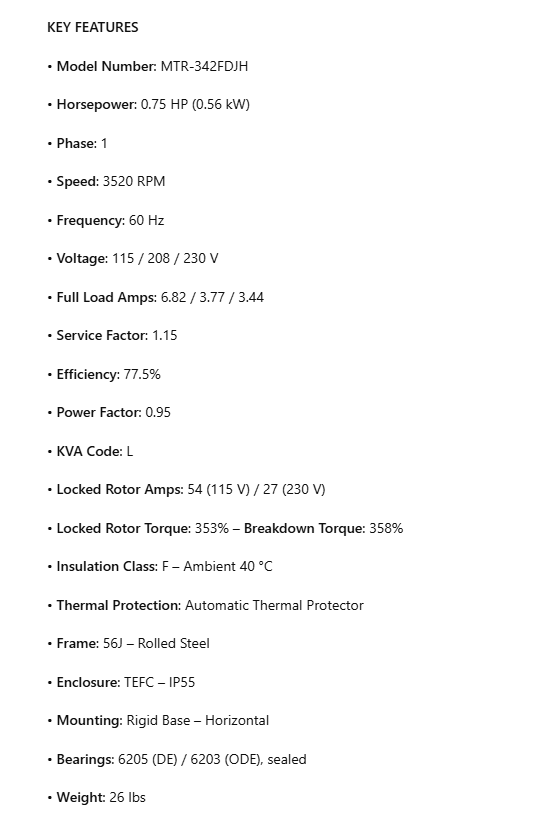

KEY FEATURES

• Model Number: MTR-342FDJH

• Horsepower: 0.75 HP (0.56 kW)

• Phase: 1

• Speed: 3520 RPM

• Frequency: 60 Hz

• Voltage: 115 / 208 / 230 V

• Full Load Amps: 6.82 / 3.77 / 3.44

• Service Factor: 1.15

• Efficiency: 77.5%

• Power Factor: 0.95

• KVA Code: L

• Locked Rotor Amps: 54 (115 V) / 27 (230 V)

• Locked Rotor Torque: 353% – Breakdown Torque: 358%

• Insulation Class: F – Ambient 40 °C

• Thermal Protection: Automatic Thermal Protector

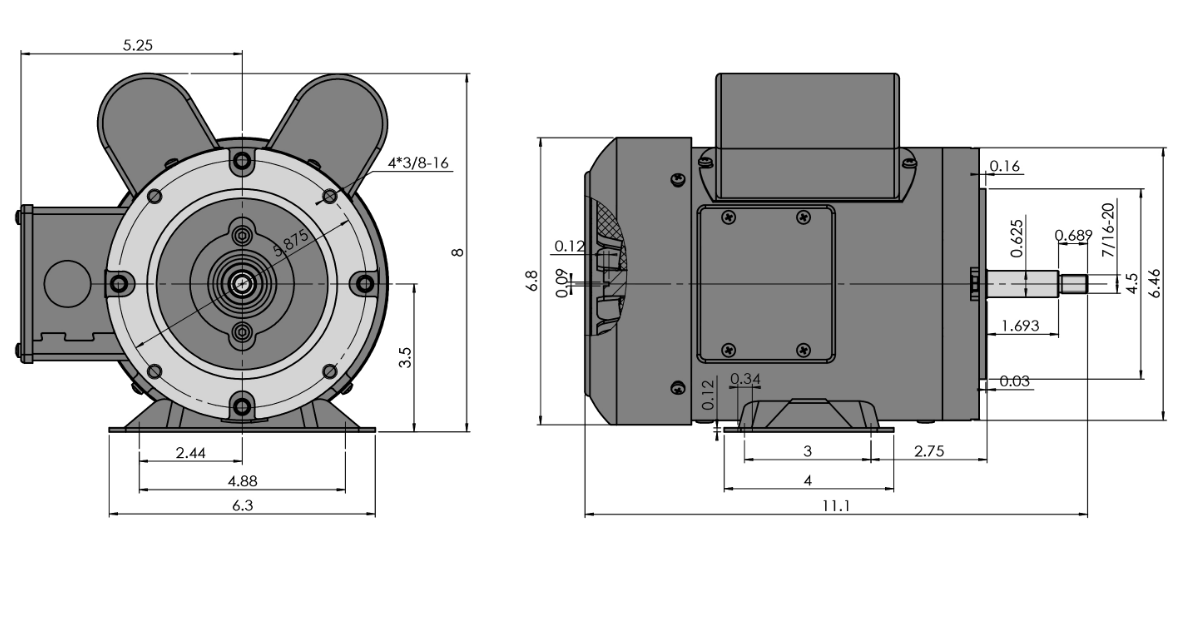

• Frame: 56J – Rolled Steel

• Enclosure: TEFC – IP55

• Mounting: Rigid Base – Horizontal

• Bearings: 6205 (DE) / 6203 (ODE), sealed

• Weight: 26 lbs
