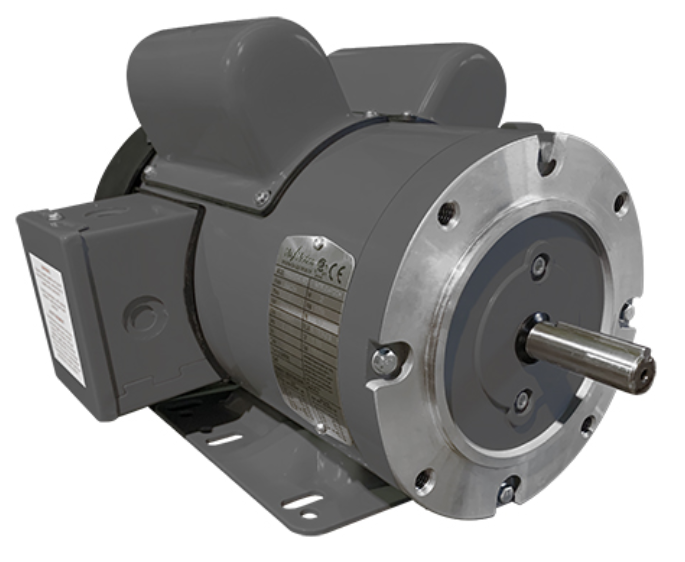

MTR-342FDCH, 3/4Hp, 3520 RPM, 115/230V, 1Ph, 60Hz, TEFC, 56C, IP55

MTR-342FDCH, 3/4Hp, 3520 RPM,  115/230V, 1Ph, 60Hz, TEFC, 56C, IP55

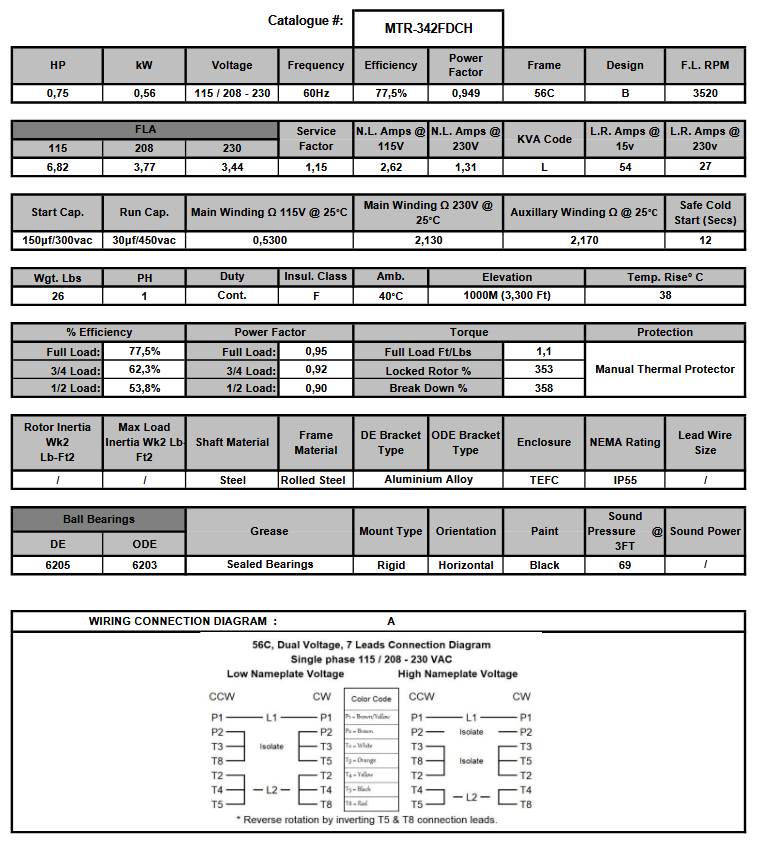

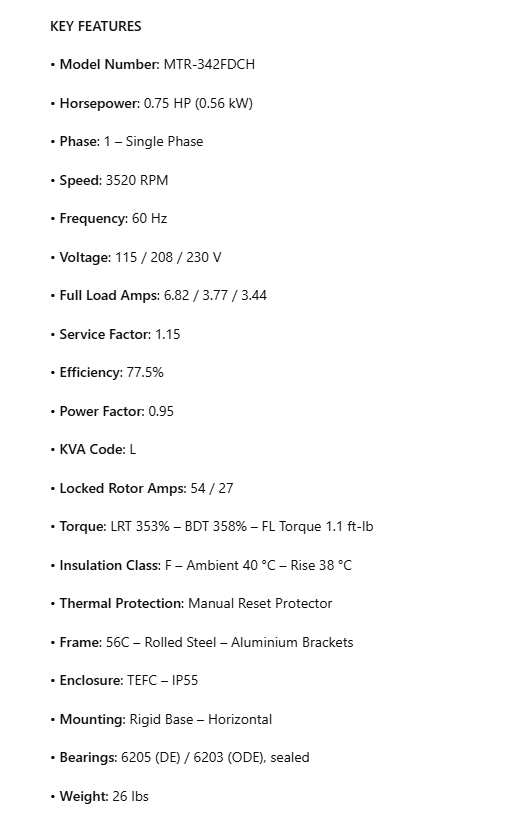

KEY FEATURES

• Model Number: MTR-342FDCH

• Horsepower: 0.75 HP (0.56 kW)

• Phase: 1 – Single Phase

• Speed: 3520 RPM

• Frequency: 60 Hz

• Voltage: 115 / 208 / 230 V

• Full Load Amps: 6.82 / 3.77 / 3.44

• Service Factor: 1.15

• Efficiency: 77.5%

• Power Factor: 0.95

• KVA Code: L

• Locked Rotor Amps: 54 / 27

• Torque: LRT 353% – BDT 358% – FL Torque 1.1 ft-lb

• Insulation Class: F – Ambient 40 °C – Rise 38 °C

• Thermal Protection: Manual Reset Protector

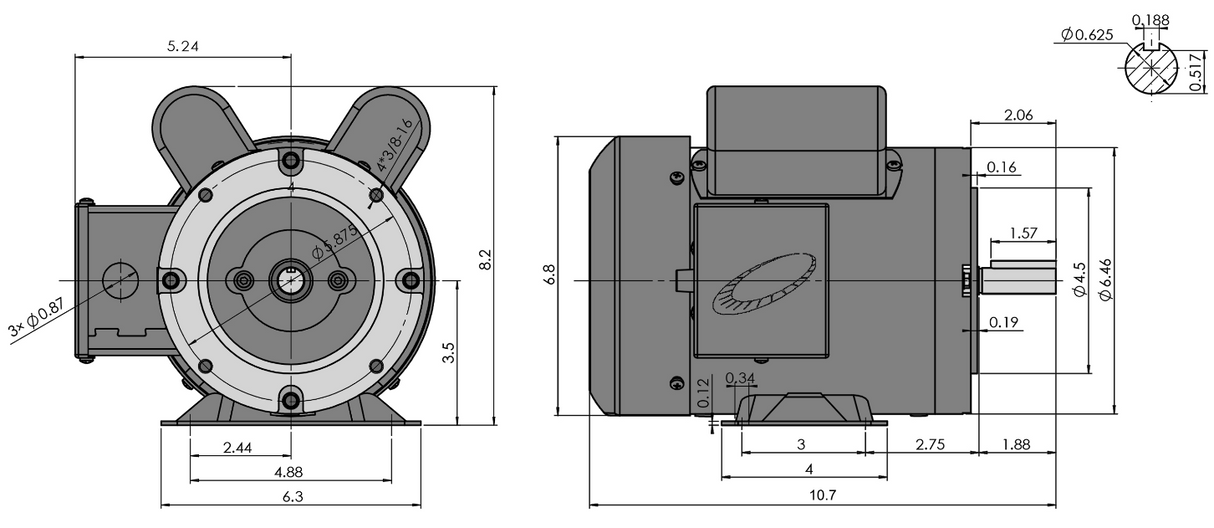

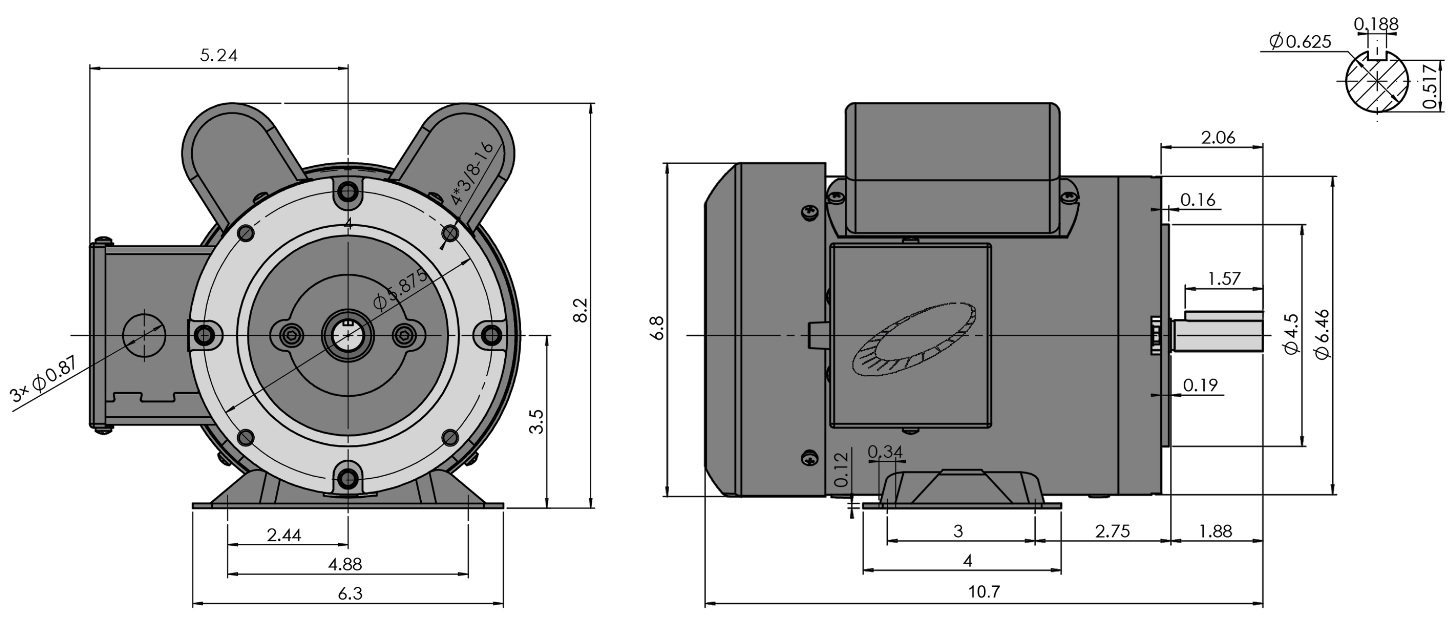

• Frame: 56C – Rolled Steel – Aluminium Brackets

• Enclosure: TEFC – IP55

• Mounting: Rigid Base – Horizontal

• Bearings: 6205 (DE) / 6203 (ODE), sealed

• Weight: 26 lbs
