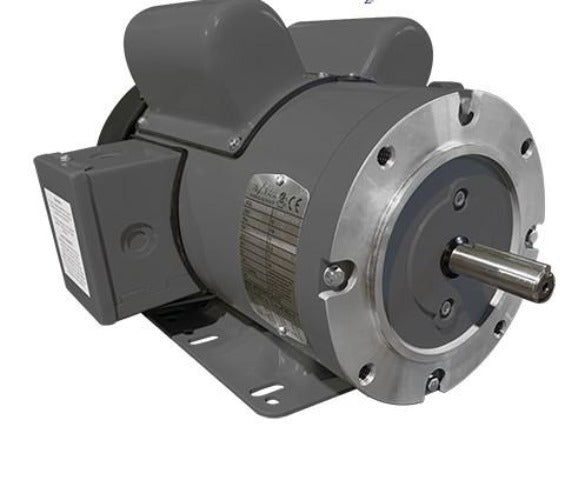

MTR-152FDCH, Maxmotion, 1.5 Hp, 3600 Rpm, 115/208-230v, Fr:56C, Tefc

MTR-152FDCH, Maxmotion, 1.5 Hp, 3600 Rpm, 115/208-230v, Fr:56C, Tefc

MAXMOTION

  • $444.91


MTR-152FDCH, Maxmotion, Replace D314 Marathon, Part 056B34F5326

  • 1.5 Hp,
  • 3600 Rpm,
  • 115/208-230v,
  • Frame 56C,
  • Tefc
  • Enclosure TEFC

Farm Duty Single Phase & General Purpose Application Features:

• Design - L, suitable for ambient temperature of 40°C, altitude 1000M

• Agency Listings and Standard - NEMA, CSAus and CSA Certified, RoHS Compliant

• Service Factor - 1.15 Electrical Supply - 115/208-230VAC, 60Hz

• Mounting - Universal mounting by feet or C flange.

• Windings - VPI with additional dip and bake, with numbered and color-coded wire leads. • Insulation - Class F insulation with B temperature rise.

• Protection - Manually resettable thermal overload.

• Voltage and Frequency Variation - ±10% Bearings - Permanently Lubricated High-quality Double Shielded Ball Bearings with oversized DE bearings. Lithium-based grease operating temperature range - 25° trough 175°C. Earthing

• Terminals - Grounding screw in conduit box • Earthing Terminals - Grounding screw in conduit box

• Enclosure Protection - IP55

• Conduit Box - Rotatable 180°, with ½ NPT knockouts positioned for wiring access every 90° with rubber gasket between box and motor frame.

• Nameplate - Stainless Steel with etched details.

• Drain Hole - Positioned in the stator frame at the lowest point, when motors a horizontally mounted.

• Warranty - 1 year
