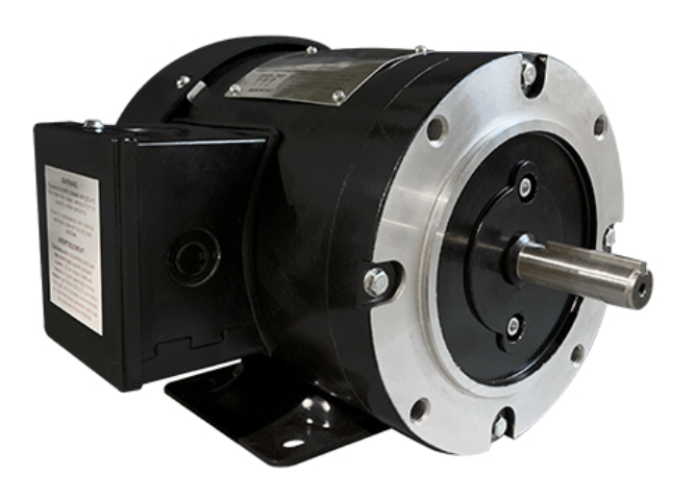

MQR-122CH, 1/2Hp, 3466 RPM, 208-230/460V, 3PH, 60Hz, TEFC, Frame 56C, 10:1 CT ~ 20:1 VT, DIV2, IP55, CLASS F

MQR-122CH, 1/2Hp, 3466 RPM, 208-230/460V, 3PH, 60Hz, TEFC, Frame 56C, 10:1 CT ~ 20:1 VT, DIV2, IP55, CLASS F

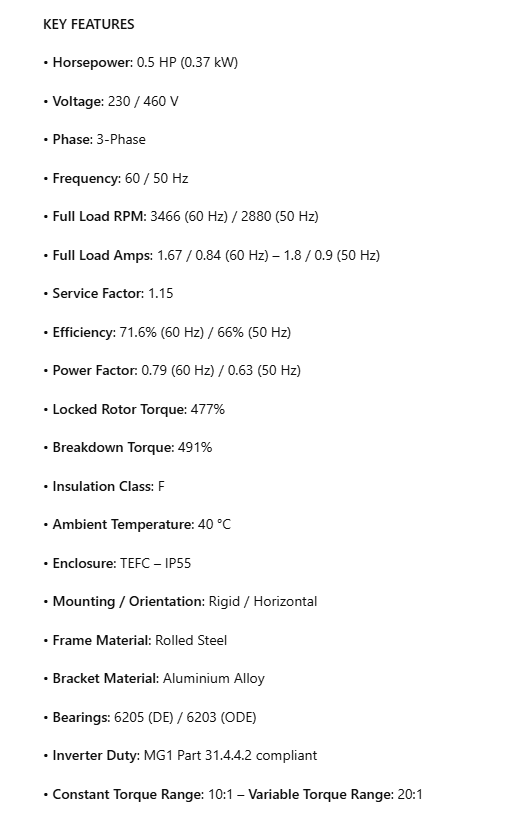

KEY FEATURES

• Horsepower: 0.5 HP (0.37 kW)

• Voltage: 230 / 460 V

• Phase: 3-Phase

• Frequency: 60 / 50 Hz

• Full Load RPM: 3466 (60 Hz) / 2880 (50 Hz)

• Full Load Amps: 1.67 / 0.84 (60 Hz) – 1.8 / 0.9 (50 Hz)

• Service Factor: 1.15

• Efficiency: 71.6% (60 Hz) / 66% (50 Hz)

• Power Factor: 0.79 (60 Hz) / 0.63 (50 Hz)

• Locked Rotor Torque: 477%

• Breakdown Torque: 491%

• Insulation Class: F

• Ambient Temperature: 40 °C

• Enclosure: TEFC – IP55

• Mounting / Orientation: Rigid / Horizontal

• Frame Material: Rolled Steel

• Bracket Material: Aluminium Alloy

• Bearings: 6205 (DE) / 6203 (ODE)

• Inverter Duty: MG1 Part 31.4.4.2 compliant

• Constant Torque Range: 10:1 – Variable Torque Range: 20:1
