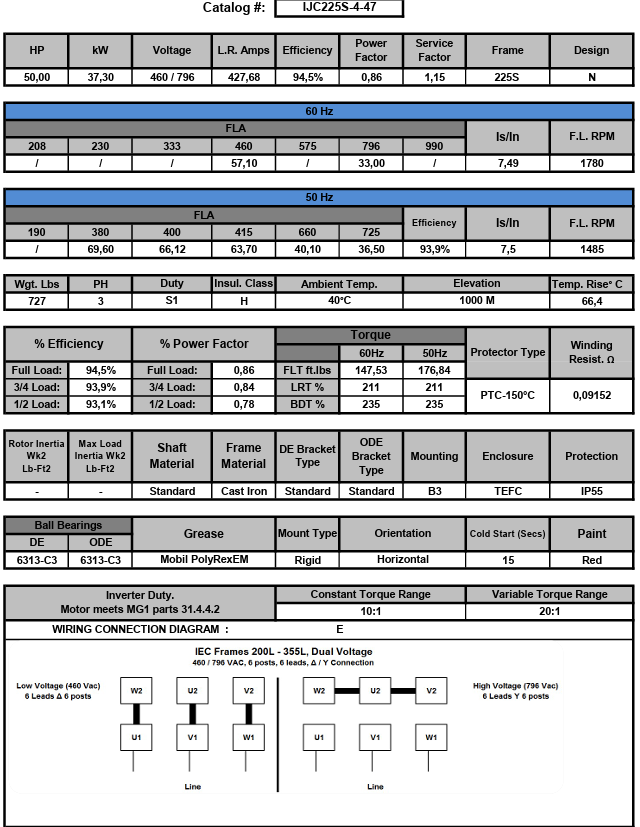

IJC225S-4-47, 50Hp, 460/796V, 3Ph, 60/50Hz, TEFC, IP55, 10:1 CT~20:1 VT

IJC225S-4-47, 50Hp, 460/796V, 3Ph, 60/50Hz, TEFC, IP55, 10:1 CT~20:1 VT

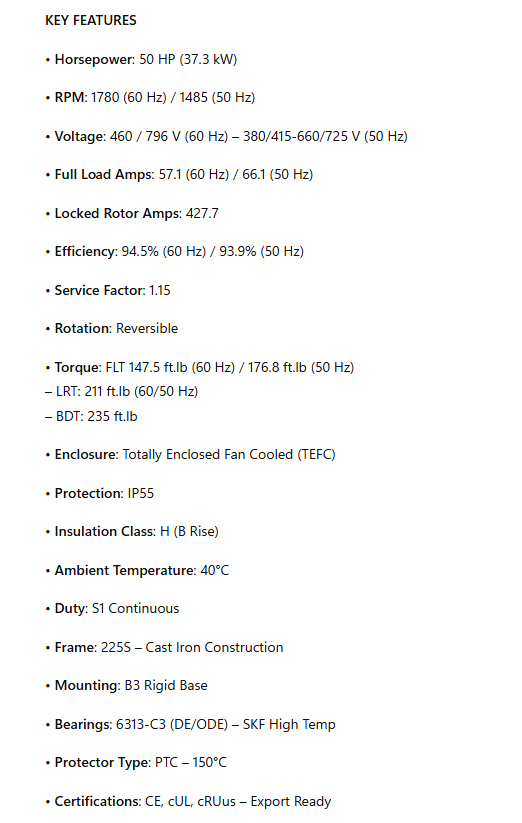

KEY FEATURES

• Horsepower: 50 HP (37.3 kW)

• RPM: 1780 (60 Hz) / 1485 (50 Hz)

• Voltage: 460 / 796 V (60 Hz) – 380/415-660/725 V (50 Hz)

• Full Load Amps: 57.1 (60 Hz) / 66.1 (50 Hz)

• Locked Rotor Amps: 427.7

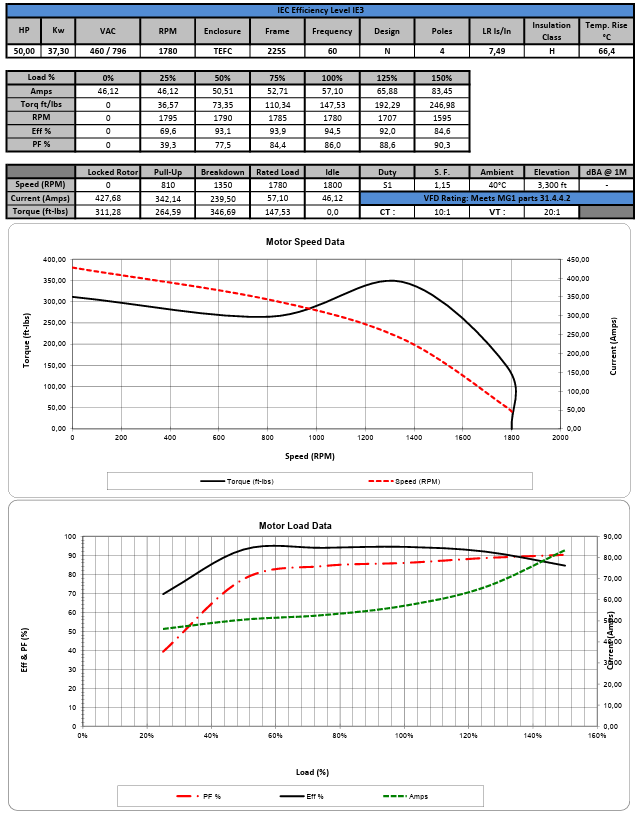

• Efficiency: 94.5% (60 Hz) / 93.9% (50 Hz)

• Service Factor: 1.15

• Rotation: Reversible

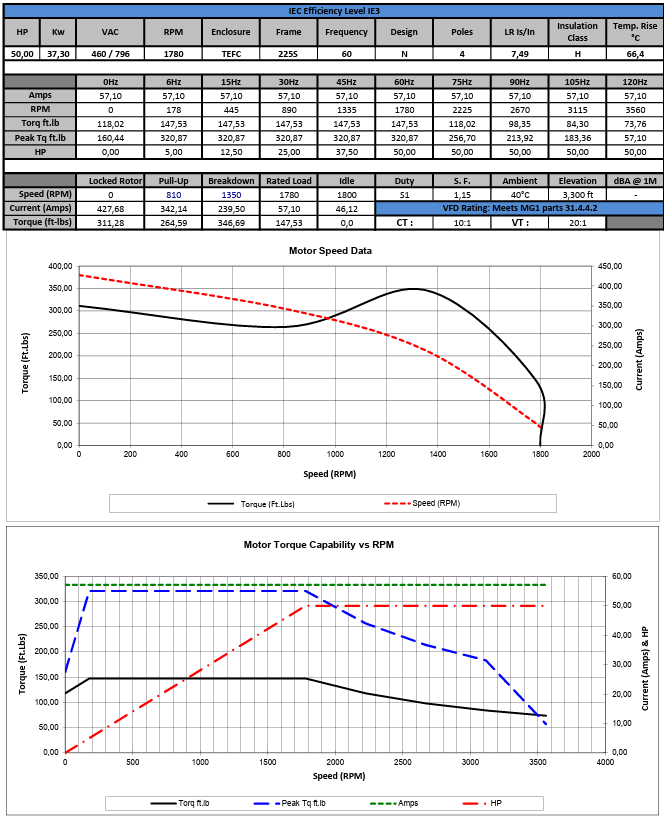

• Torque: FLT 147.5 ft.lb (60 Hz) / 176.8 ft.lb (50 Hz)
– LRT: 211 ft.lb (60/50 Hz)
– BDT: 235 ft.lb

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Protection: IP55

• Insulation Class: H (B Rise)

• Ambient Temperature: 40°C

• Duty: S1 Continuous

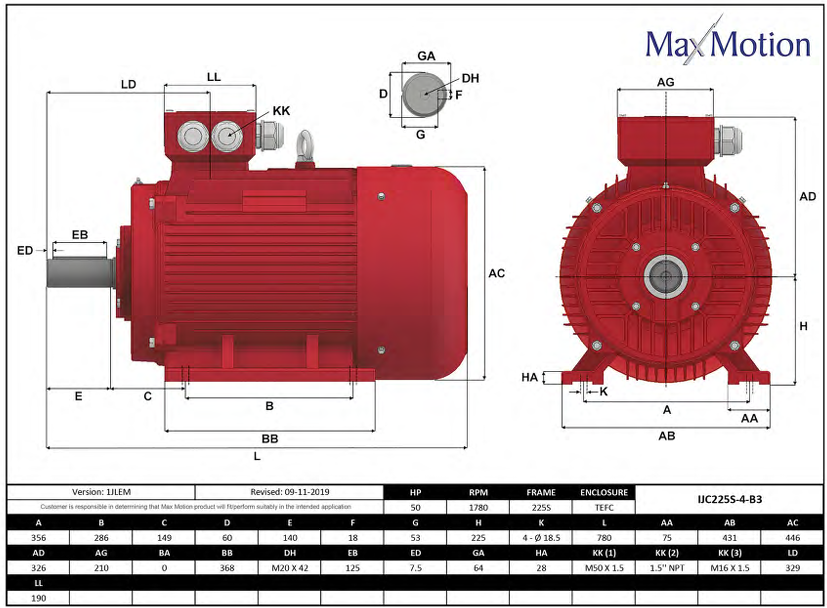

• Frame: 225S – Cast Iron Construction

• Mounting: B3 Rigid Base

• Bearings: 6313-C3 (DE/ODE) – SKF High Temp

• Protector Type: PTC – 150°C

• Certifications: CE, cUL, cRUus – Export Ready
