IJA290S-2-24D, 2Hp, 3474 RPM, 208-230/460V, 3PH, 60-50Hz, TEFC, Frame 90S, IP55, D-Flange

IJA290S-2-24D, 2Hp, 3474 RPM, 208-230/460V, 3PH, 60-50Hz, TEFC, Frame 90S, IP55, D-Flange

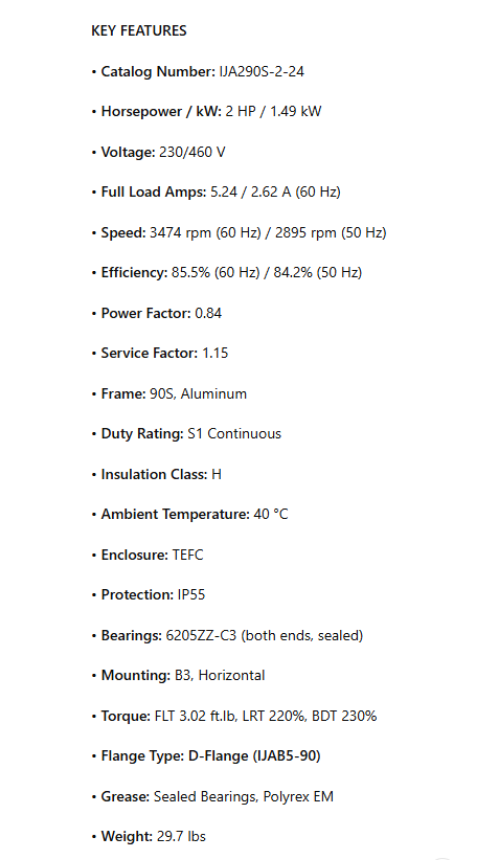

KEY FEATURES

• Catalog Number: IJA290S-2-24

• Horsepower / kW: 2 HP / 1.49 kW

• Voltage: 230/460 V

• Full Load Amps: 5.24 / 2.62 A (60 Hz)

• Speed: 3474 rpm (60 Hz) / 2895 rpm (50 Hz)

• Efficiency: 85.5% (60 Hz) / 84.2% (50 Hz)

• Power Factor: 0.84

• Service Factor: 1.15

• Frame: 90S, Aluminum

• Duty Rating: S1 Continuous

• Insulation Class: H

• Ambient Temperature: 40 °C

• Enclosure: TEFC

• Protection: IP55

• Bearings: 6205ZZ-C3 (both ends, sealed)

• Mounting: B3, Horizontal

• Torque: FLT 3.02 ft.lb, LRT 220%, BDT 230%

• Flange Type: D-Flange (IJAB5-90)

• Grease: Sealed Bearings, Polyrex EM

• Weight: 29.7 lbs
