MAX MOTION  |  SKU: EMN-019497

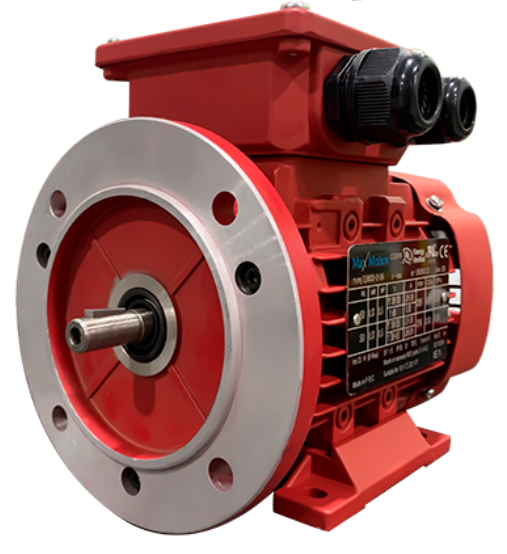

IJA2112M-4-59-B35, Maxmotion 5.5Hp 1725 RPM 575/990/3/60 TEFC 112M IMB35 Aluminum IE3 10:1 CT~20:1 VT IP55 CLASS H 1.15SF

$1,483.68
shipping

Estimate shipping

Description

IJA2112M-4-59-B35, Maxmotion 5.5Hp 1725 RPM 575/990/3/60 TEFC 112M IMB35 Aluminum IE3 10:1 CT~20:1 VT IP55 CLASS H 1.15SF

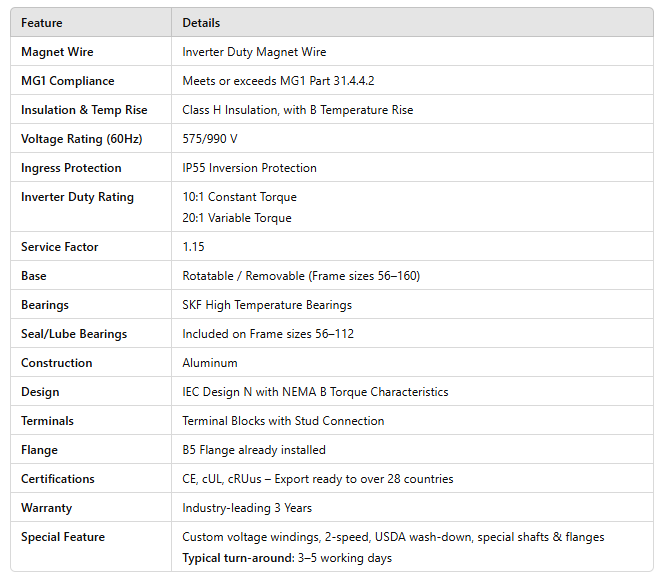

Feature Details
Magnet Wire Inverter Duty Magnet Wire
MG1 Compliance Meets or exceeds MG1 Part 31.4.4.2
Insulation & Temp Rise Class H Insulation, with B Temperature Rise
Voltage Rating (60Hz) 575/990 V
Ingress Protection IP55 Inversion Protection
Inverter Duty Rating 10:1 Constant Torque
20:1 Variable Torque
Service Factor 1.15
Base Rotatable / Removable (Frame sizes 56–160)
Bearings SKF High Temperature Bearings
Seal/Lube Bearings Included on Frame sizes 56–112
Construction Aluminum
Design IEC Design N with NEMA B Torque Characteristics
Terminals Terminal Blocks with Stud Connection
Flange B5 Flange already installed
Certifications CE, cUL, cRUus – Export ready to over 28 countries
Warranty Industry-leading 3 Years
Special Feature Custom voltage windings, 2-speed, USDA wash-down, special shafts & flanges
Typical turn-around: 3–5 working days
