IJA132M2-2-59, 15 HP, 3600 RPM, 575V, FRAME 132M, TEFC, MAXMOTION - METRIC MOTOR - MAXMOTION - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur

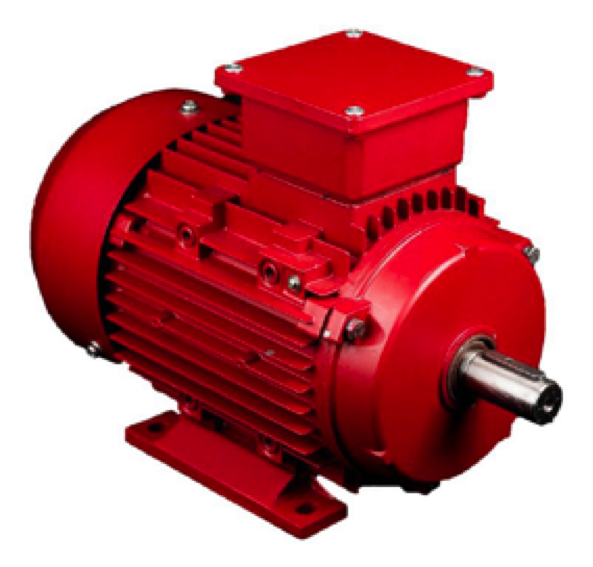

IJA132M2-2-59, Maxmotion,15 Hp, 3600 Rpm, 575 volts, frame 132M, Tefc

MAXMOTION

$2,663.88

METRIC IEC ALUMINUM & CAST IRON CONSTRUCTION

TEFC TOTALLY ENCLOSED FAN COOLED IE1, and IE3 EFFICIENCIES

FEATURES:

IP55 weather protection
Class H Insulation, with B Temp Rise
Inverter Duty Magnet Wire,

meets MG1 Part 31 10:1 CT, 20:1 VT
SKF High Temp bearings
56-112 Frames come with

Seal/lubricated Bearings,
132 and larger are re-greasable
Aluminum Construction 56-160 frame, Cast Iron 180-500 frame
Rotatable/Removable Base 63-160 Frame, Rigid Base 180 larger
PTC installed on frames 132 and larger
IEC Design N, with NEMA B Torques

Terminal Blocks, Stud

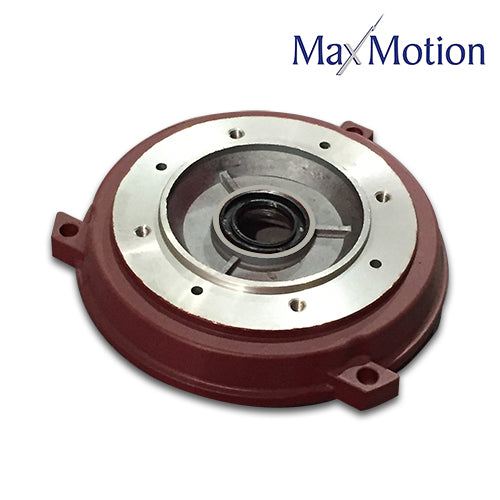

B14 and B5 Flanges are available
MAX MOTION ELECTRIC MOTOR

HP	15
CAT. #	IJA132M2-2-59
RPM	3600
VOLTAGE	575
FRAME	132
TORQUE (IN.LBS.)
WGT. LBS.	157.586
“L” DIM.	480
KW	11
EFF	IE3

IJA
