MAX MOTION | SKU:
EMN-009586

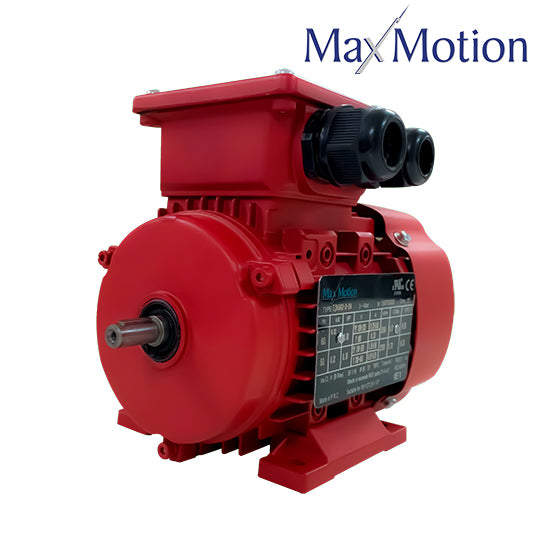

IJA112M-6-59, MaxMotion,3 Hp,1165 Rpm,575V, 3Ph, Fr:112M,Tefc,IEC, B3,
Regular price
$1,577.85
Unit price
/
Unavailable
IJA112M-6-59, MaxMotion,3 Hp,1165 Rpm,575V, 3Ph, Fr:112M,Tefc,IEC, B3, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
IJA112M-6-59, MaxMotion,3 Hp,1165 Rpm,575V, 3Ph, Fr:112M,Tefc,IEC, B3,
Regular price
$1,577.85
Unit price
/
Unavailable
Description
Description
IJA112M-6-59, MaxMotion, Replace Weg, ME003506W22L112, Leeson 193401.00,
Electric Motors
| Frame | L112M |
|---|---|
| Output | 2.2 kW, 3 Hp |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1165 rpm |
| Slip | 2.92 % |
| Rated voltage | 575 V |
| Rated current | 3.63 A |
| L. R. Amperes | 26.8 A |
| LRC | 7.4 |
| No load current | 2.22 A |
| Rated torque | 13.3 ft.lb |
| Locked rotor torque | 310 % |
| Breakdown torque | 360 % |
| Locked rotor time | 59s (cold) 33s (hot) |
| Moment of inertia (J) | 0.6962 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3R(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 66 lb |
