MARATHON | SKU:
EMN-007478

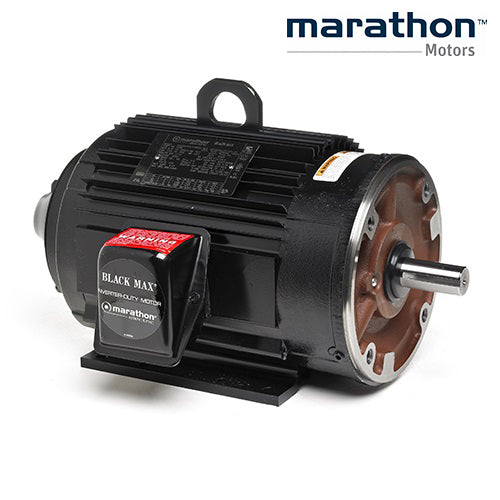

Y535, Marathon, 056H17T5302, 1 HP, 1725 Rpm, 230/460V, 56C, TENV, 1000:1
Regular price
$979.43
Unit price
/
Unavailable
Y535, Marathon, 056H17T5302, 1 HP, 1725 Rpm, 230/460V, 56C, TENV, 1000:1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
Description
Description
Y535, MARATHON, 056H17T5302,
Model : | 056H17T5302 | Catalog No : | Y535 |
Part Description : | 1,1725,TENV,56C,3/60/230/460 | Category : | 1000:1 Speed Ratio |
Stock : | Yes |
Nameplate Specifications
Output HP : | 1 Hp | Output KW : | 0.75 kW |
Frequency : | 60 Hz | Voltage : | 230/460 V |
Current : | 3.0/1.5 A | Speed : | 1725 rpm |
Service Factor : | 1 | Phase : | 3 |
Efficiency : | 84 % | Duty : | Continous |
Insulation Class : | F | Design Code : | INV |
KVA Code : | P | Frame : | 56C |
Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
Opp Drive End Bearing Size : | 6203 |
