MARATHON | SKU:
EMN-007475

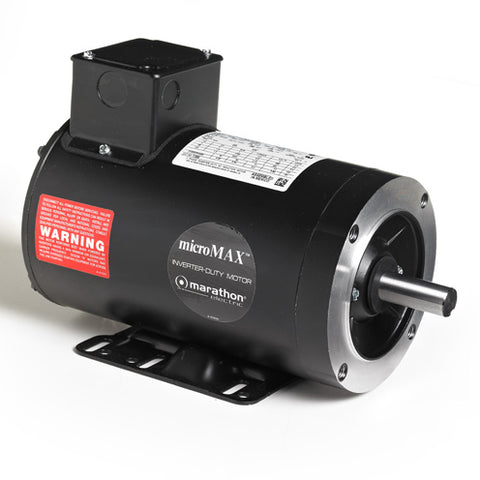

Y506, Marathon, MicroMax, 3/4 Hp, 1725 Rpm, 230V, 56C, 056H17F2011
Regular price
$594.57
Unit price
/
Unavailable
Y506, Marathon, MicroMax, 3/4 Hp, 1725 Rpm, 230V, 56C, 056H17F2011 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![Y360, Marathon, MicroMax, 1/2 Hp, 1725 Rpm, 230/460V, 56C, 056H17T2017 - Micromax - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur - fan](http://www.emotornations.com/cdn/shop/products/Marathon_Y360_1489ec99-1938-4266-9744-0a4d1e201906.jpg?v=1756414458&width=112)
Y506, Marathon, MicroMax, 3/4 Hp, 1725 Rpm, 230V, 56C, 056H17F2011
Regular price
$594.57
Unit price
/
Unavailable
Description
Description
Y506, Marathon, Part # 056H17F2011
Nameplate Specifications
| Output HP: | 0.75 Hp | Output KW: | 0.56 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 2.8 A | Speed: | 1725 rpm |
| Service Factor: | 1 | Phase: | 3 |
| Efficiency: | 75.5 % | Power Factor: | 70.5 |
| Duty: | Continuous | Insulation Class: | H |
| Design Code: | INV | KVA Code: | L |
| Frame: | 56C | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Duty | Starting Method: | Inverter Only |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 23 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 11.19 in |
| Frame Length: | 6.25 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 2.06 in | Assembly/Box Mounting: | F3 |
