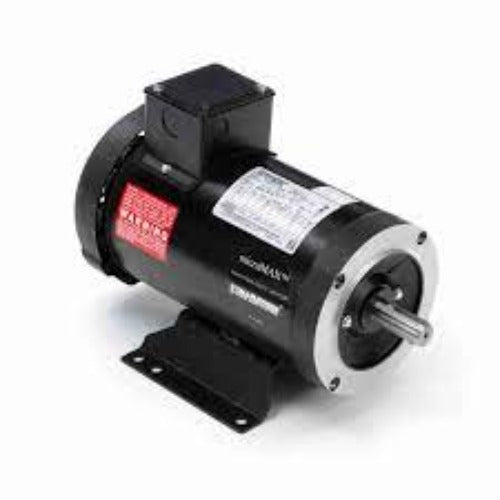

Y370, Marathon, 3 Hp, 1750 Rpm, 208-220/440V, 182TCZ, 182THFR5329, TEFC

Y370, Marathon, 3 Hp, 1750 Rpm, 208-220/440V, 182TCZ, 182THFR5329, TEFC

MARATHON

  • $1,592.77


Y370, Marathon , Crop Dryer Motor, PART 182THFR5329, Y370

*** BUILT-UP MARATHON *****

3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 8.4/4.2 A Speed: 1735 rpm
Service Factor: 1 Phase: 3
Efficiency: 85.5 % Power Factor: 79
Duty: Continuous Insulation Class: H
Design Code: INV KVA Code: L
Frame: 182TCZ Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Duty Starting Method: Inverter Only
Poles: 4 Rotation: Reversible
Resistance Main: 5.32 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 145T Overall Length: 14.87 in
Frame Length: 9.56 in Shaft Diameter: 0.875 in
Shaft Extension: 2.12 in Assembly/Box Mounting: F3
