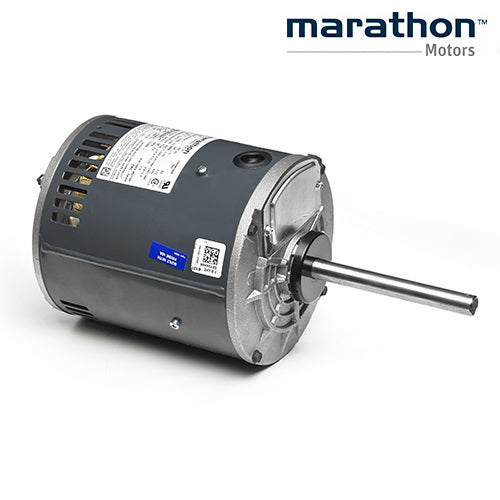

X522, Marathon, 1 HP, 1140 RPM, 575V, 3PH, 056T11O5308, FR:56Y, CONDENSER FAN

MARATHON

$653.93

X522, MARATHON, 056T11O5308

1 Hp	Output KW:	0.75 kW
Frequency:	60 Hz	Voltage:	575 V
Current:	1.7 A	Speed:	1140 rpm
Service Factor:	1	Phase:	3
Efficiency:	75.5 %	Power Factor:	60.7
Duty:	Continuous	Insulation Class:	H
Design Code:	NO DESIGN CODE	KVA Code:	K
Frame:	56Y	Enclosure:	Open Air Over
Thermal Protection:	Automatic Lock Rotor Only	Ambient Temperature:	70 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	10
