MARATHON | SKU:
EMN-018184

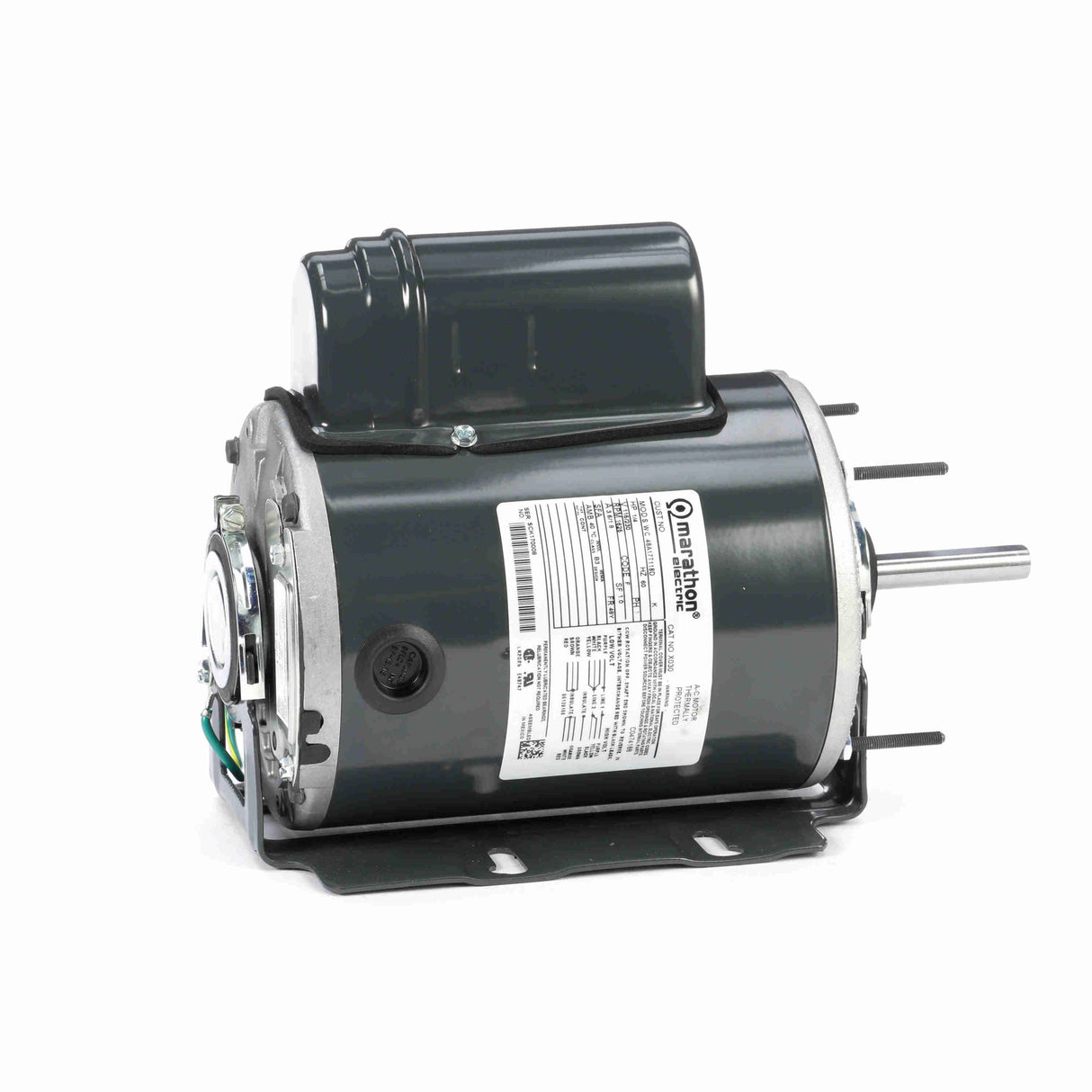

X03,Marathon, 0.25 Hp, 1 Ph, 60 Hz, 115/230 V, 1800 Rpm, 48Y Fr,TEAO,
Regular price
$436.04
Unit price
/
Unavailable
Shipping calculated at checkout.
X03,Marathon, 0.25 Hp, 1 Ph, 60 Hz, 115/230 V, 1800 Rpm, 48Y Fr,TEAO, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
X03,Marathon, 0.25 Hp, 1 Ph, 60 Hz, 115/230 V, 1800 Rpm, 48Y Fr,TEAO,
Regular price
$436.04
Unit price
/
Unavailable
Description
Description
X030, Marathon, 48A17T118D, Replace by Us Motors, K055RJL1991012B, 1255
| Nameplate Specifications | |
|---|---|
| Phase | 1 |
| Output HP | 0.25 HP |
| Output KW | 0.19 kW |
| Voltage | 115/230 V |
| Speed | 1625 rpm |
| Service Factor | 1 |
| Frame | 48Y |
| Enclosure | Totally Enclosed Air Over |
| Thermal Protection | Automatic |
| Efficiency | 68 % |
| Ambient Temperature | 40 °C |
| Frequency | 60 Hz |
| Current | 3.6/1.8 A |
| Power Factor | 87.5 |
| Duty | Continuous |
| Insulation Class | B |
| Design Code | NO DESIGN CODE |
| KVA Code | F |
| Drive End Bearing Size | 6203 |
| Opp Drive End Bearing Size | 6203 |
| UL | Recognized |
| CSA | Yes |
| CE | No |
| IP Code | 43 |
| Number of Speeds | 1 |
| Technical Specifications | |
|---|---|
| Electrical Type | Permanent Split Capacitor |
| Starting Method | Across The Line |
| Poles | 4 |
| Rotation | Selective Counterclockwise |
| Resistance Main | 0 Ohms |
| Mounting | Resilient Base - Extended Studs |
| Motor Orientation | Horizontal |
| Drive End Bearing | Ball |
| Opp Drive End Bearing | Ball |
| Frame Material | Rolled Steel |
| Shaft Type | Single Special Extension |
| Overall Length | 11.06 in |
| Frame Length | 6.50 in |
| Shaft Diameter | 0.500 in |
| Shaft Extension | 2.56 in |
| Assembly/Box Mounting | F1 ONLY |
| General Specifications | |
|---|---|
| UPC | 722856028051 |
| Weight | 20.00 LB |
| Packaged Length | 12.44 IN |
| Packaged Width | 9.13 IN |
| Packaged Height | 8.06 IN |
| HTC | 8501.40.4040 |
| Country of Origin | Mexico |
KEY FEATURES
- Double-shielded bearings extend the service life of the motor.
- EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
- Shaft flingers protect bearings from damage caused by dirt and rain.
- Condensation drains allow the motor to expel and drain built-up moisture.
