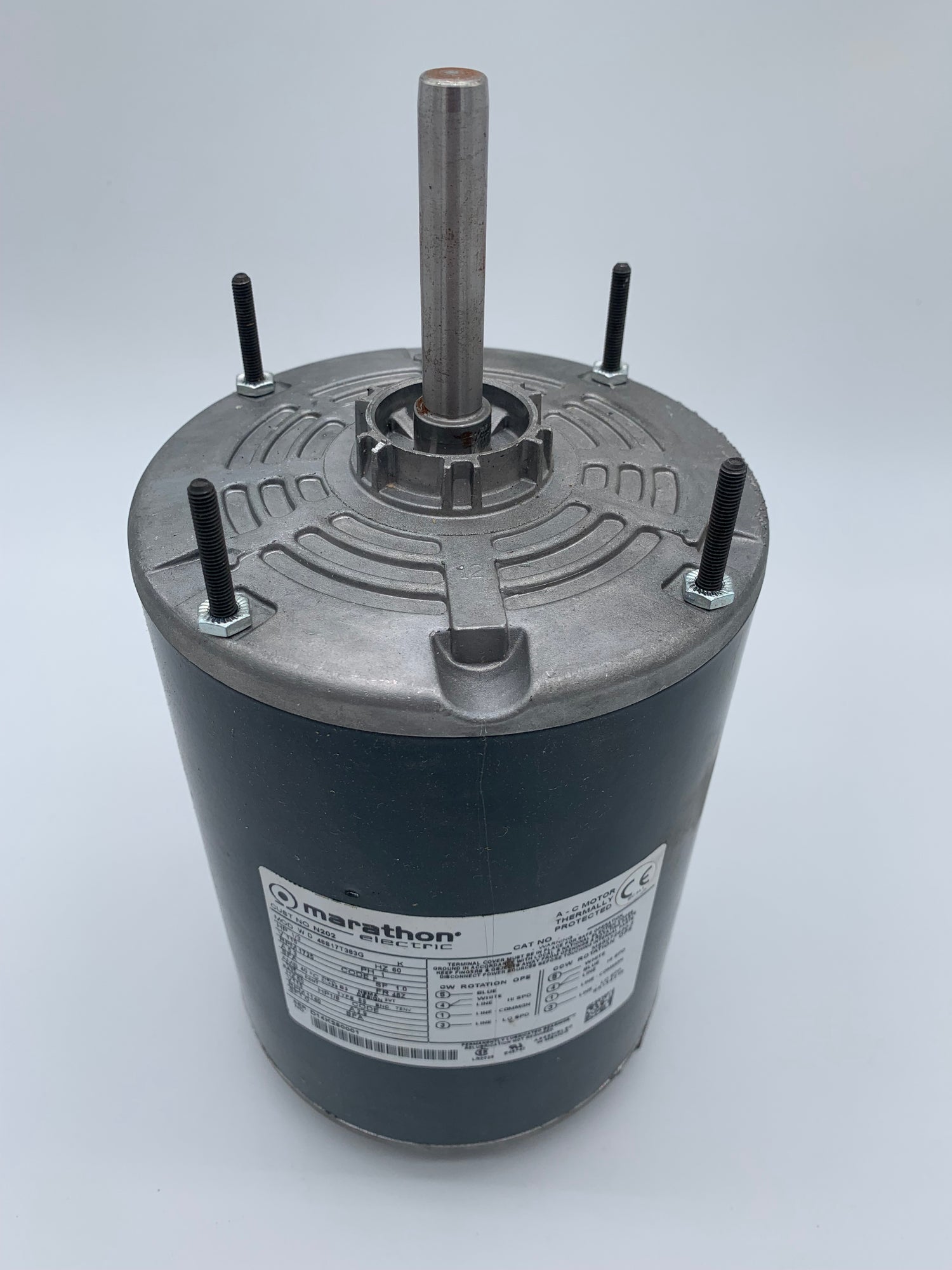

MARATHON  |  SKU: EMN-017819

N202, 048S17T383, Marathon, 1/3-1/6Hp,1725/1140 Rpm,115V, Tenv, Frame:48Z,

$390.74
shipping

Estimate shipping

Description

N202,048S17T383,Marathon,

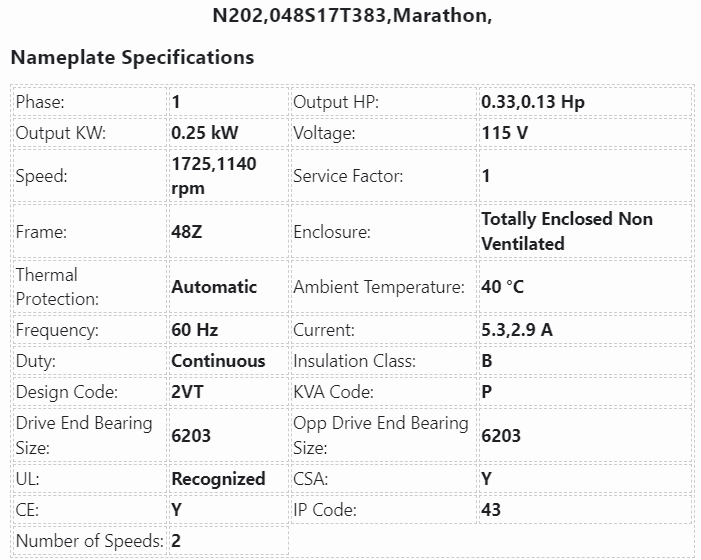

Nameplate Specifications

Phase: 1 Output HP: 0.33,0.13 Hp
Output KW: 0.25 kW Voltage: 115 V
Speed: 1725,1140 rpm Service Factor: 1
Frame: 48Z Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.3,2.9 A
Duty: Continuous Insulation Class: B
Design Code: 2VT KVA Code: P
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 2

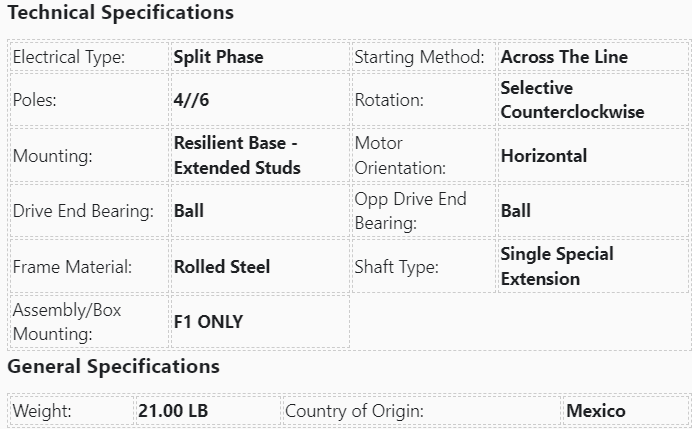

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4//6 Rotation: Selective Counterclockwise
Mounting: Resilient Base - Extended Studs Motor Orientation: Horizontal
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Single Special Extension
Assembly/Box Mounting: F1 ONLY

General Specifications

Weight: 21.00 LB Country of Origin: Mexico
