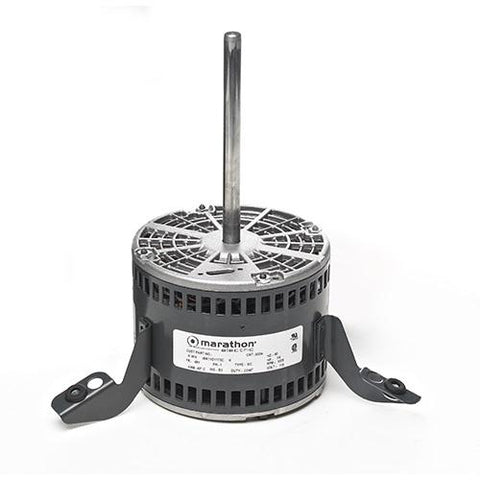

Marathon, X034, 48A11O1773, 1/4 hp, 1075/4spd, 115v, SS752, dd-034

MARATHON

$361.25

MARATHON X034, MOD: 48A11O1773, Replaces FM1026, 3584, SS752B, SS752 OMNIDRIVE, DD-034

Nameplate Specifications

Output HP :	0.25 Hp	Output KW :	0.19 kW
Frequency :	60 Hz	Voltage :	115 V
Current :	3.1 A	Speed :	1075 rpm
Service Factor :	1	Phase :	1
Efficiency :	52.4 %	Duty :	Continous
Insulation Class :	B	Design Code :	NO DESIGN CODE
KVA Code :	A	Frame :	48Z
Enclosure :	Open Air Over	Overload Protector :	Auto Lock Rotor Only
Ambient Temperature :	40 °C	Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	N
IP Code :	10
