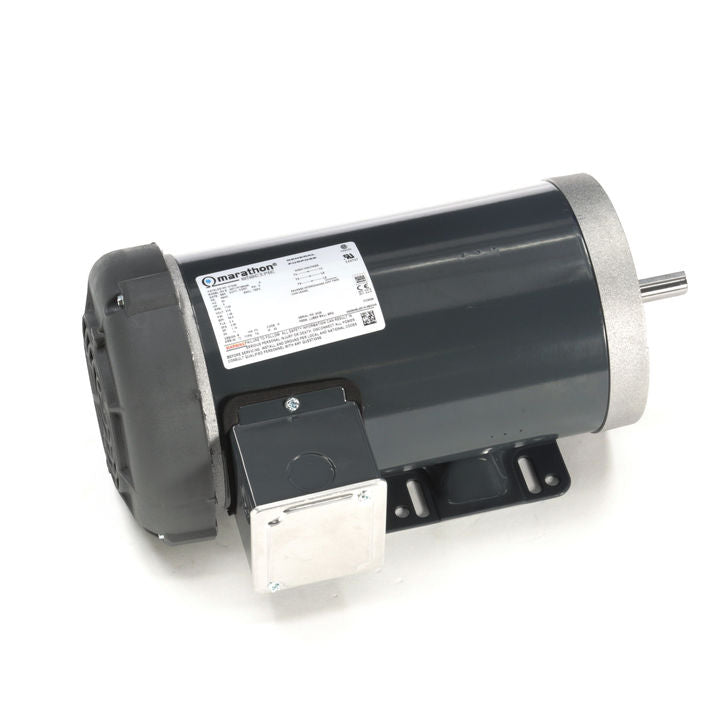

MARATHON  |  SKU: EMN-007304

K724, Marathon, K724A, 2 Hp,1800 Rpm, 575V, 056T17F15644, 056T17F5340,

$733.21
shipping

Estimate shipping

Description

K724, 056T17F15644, 056T17F5340, MARATHON, MPR-204CW, K724A, 056T175644,

Nameplate Specifications
Output HP :   2 Hp
Output KW :   1.49 kW
Frequency :   60 Hz
Voltage :   575 V
Current :   2.4 A
Speed :   1725 rpm
Service Factor :   1.15
Phase :   3
Efficiency :   86.5 %
Duty :   CONTINUOUS
Insulation Class :   F
Design Code :   B
KVA Code :   N
Frame :   56HC
Enclosure :   TEFC
Overload Protector :   NOT
Ambient Temperature :   40 °C
Drive End Bearing Size :   6205
Opp Drive End Bearing Size :   6203
UL :   Recognized
CSA :   Y
CE :   Y
IP Code :   43
Technical Specifications
Electrical Type :   SQ CAGE IND RUN
Starting Method :   ACROSS THE LINE
Poles :   4
Rotation :   REV
Mounting :   BOLT-ON
Motor Orientation :   HORIZONTAL OR UP OR DOWN
Drive End Bearing :   BALL
Opp Drive End Bearing :   BALL
Frame Material :   ROLLED STEEL
Shaft Type :   STANDARD 56
Overall Length :   15.15 in
Frame Length :   8.65 in
Shaft Diameter :   0.63 in
Shaft Extension :   1.88 in
Assembly/Box Mounting :   F1 ONLY
UPC :   722856052056
