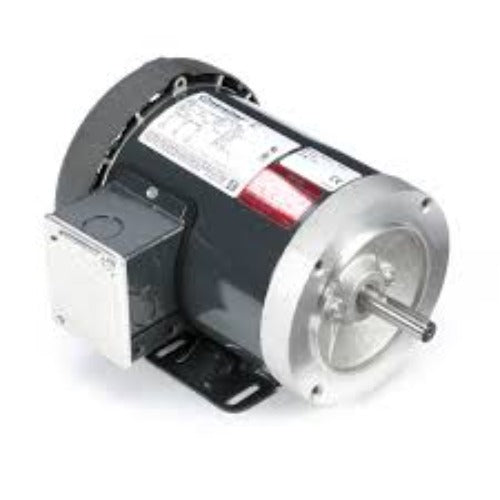

K706, 056T34F5349, 3/4 HP, 3600 RPM, 575V, FR:56C, MPR-342CW, MARATHON

MARATHON

  • $456.01


K706,056T34F5349,MARATHON, MPR-342CW,

Nameplate Specifications


Output HP :   0.75 Hp
Output KW :   0.56 kW
Frequency :   60 Hz
Voltage :   575 V
Current :   1.3 A
Speed :   3450 rpm
Service Factor :   1.15
Phase :   3
Efficiency :   74 %
Duty :   CONTINUOUS
Insulation Class :   F
Design Code :   B
KVA Code :   N
Frame :   56C
Enclosure :   TEFC
Overload Protector :   NOT
Ambient Temperature :   40 °C
Drive End Bearing Size :   6203
Opp Drive End Bearing Size :   6203
UL :   Recognized
CSA :   Y
CE :   Y
IP Code :   43
Technical Specifications


Electrical Type :   SQ CAGE IND RUN
Starting Method :   ACROSS THE LINE
Poles :   2
Rotation :   REV
Mounting :   BOLT-ON
Motor Orientation :   HORIZONTAL OR UP OR DOWN
Drive End Bearing :   BALL
Opp Drive End Bearing :   BALL
Frame Material :   ROLLED STEEL
Shaft Type :   STANDARD 56
Overall Length :   11.81 in
Frame Length :   6.56 in
Shaft Diameter :   0.63 in
Shaft Extension :   2.06 in
Assembly/Box Mounting :   F1 ONLY
