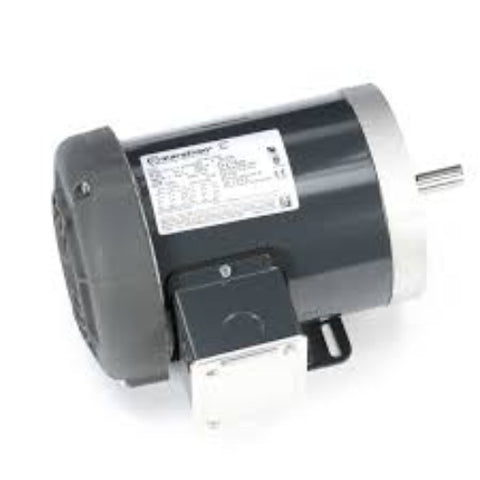

K701A, Marathon, 1 Hp, 1140 Rpm, 230/460V, FR: 56C, 056T11F15521, K701, 056T11F5307

MARATHON

$867.75

K701A, 056T11F15521, K701, 056T11F5307

Model :	056T11F15521	Catalog No :	K701A
Part Description :	1,1200,TEFC,56HC,3/60/230/460	Category :	Totally Enclosed Fan Cooled (TEFC)
Stock :	Yes

Nameplate Specifications

Output HP :	1 HP	Output KW :	0.75 kW
Frequency :	60 Hz	Voltage :	230/460 V
Current :	3.8/1.9 A	Speed :	1140 RPM
Service Factor :	1.15	Phase :	3
Efficiency :	82.5 %	Duty :	Continuous
Insulation Class :	F	Design Code :	B
KVA Code :	L	Frame :	56HC
Enclosure :	Totally Enclosed Fan Cooled	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6205
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	Y
IP Code :	43

Technical Specifications

Electrical Type :	Squirrel Cage Induction Run	Starting Method :	Across The Line
Poles :	6	Rotation :	Reversible
Mounting :	Bolt-on Base	Motor Orientation :	Horizontal Or Up Or Down
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Rolled Steel	Shaft Type :	NEMA 56
Overall Length :	15.15 in	Frame Length :	9.65 in
Shaft Diameter :	0.625 in	Shaft Extension :	1.87 in
Assembly/Box Mounting :	F1 ONLY	UPC :	722856051998
Weight :	47.00 LB
