MARATHON | SKU:
EMN-016234

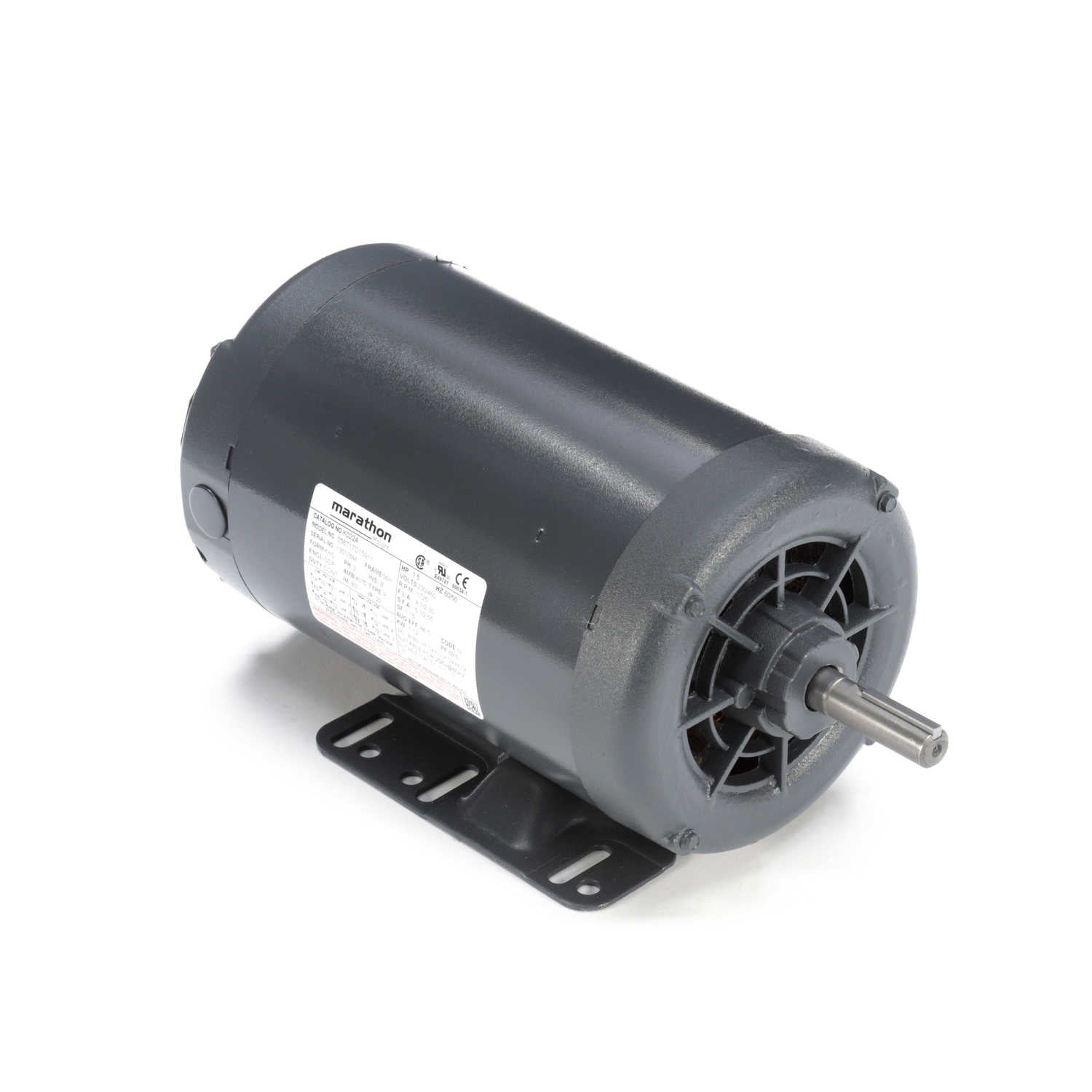

K061A, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, ODP, EXK061A
Regular price
$532.23
Unit price
/
Unavailable
K061A, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, ODP, EXK061A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![K061A, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, ODP, EXK061A - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/K061A_MARATHON_EXK061_4bc723ee-e2c0-4ccc-aafd-7abadb597739.jpg?v=1756479509&width=112)
K061A, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, ODP...
Regular price
$532.23
Unit price
/
Unavailable
Description
Description
K061A, Marathon, EXK061A, CAT 056T17D5369, 056T17D15943
General Specifications
| Model : | 056T17D15913 | Catalog No : | K061A |
| Part Description : | 1 1/2,1725,DP,56H,3/60/575 | Category : | Open Drip Proof (ODP) |
| Stock : | Yes |
Nameplate Specifications
| Output HP : | 1.50 HP | Output KW : | 1.1 kW |
| Frequency : | 60 Hz | Voltage : | 575 V |
| Current : | 1.9 A | Speed : | 1725 RPM |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 86.5 % | Duty : | Continous |
| Insulation Class : | B | Design Code : | B |
| KVA Code : | M | Frame : | 56H |
| Enclosure : | Drip Proof | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 22 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 14.07 in | Frame Length : | 8.25 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.25 in |
| Assembly/Box Mounting : | F1 Out ODE Brkt Radial | UPC : | 722856117618 |
| Weight : | 44.00 LB |
