MARATHON | SKU:
EMN-017393

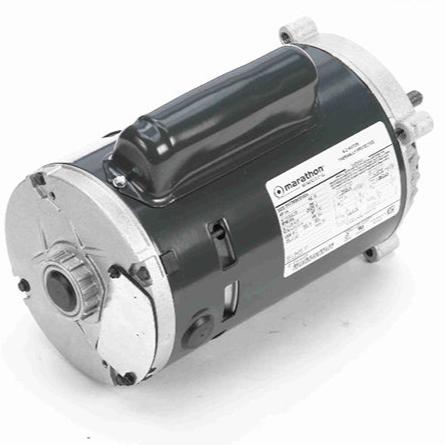

J035, Marathon, 0.75Hp, C333V1, 1725Rpm, 115/230V, Fr:56N, C055JZP4769013J,
Regular price
$399.95
Unit price
/
Unavailable
J035, Marathon, 0.75Hp, C333V1, 1725Rpm, 115/230V, Fr:56N, C055JZP4769013J, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
J035, Marathon, 0.75Hp, C333V1, 1725Rpm, 115/230V, Fr:56N, C055JZP4...
Regular price
$399.95
Unit price
/
Unavailable
Description
Description
J035, Marathon,C055JZP4769013J,EU0752, Us Motors, C333,C333V1,

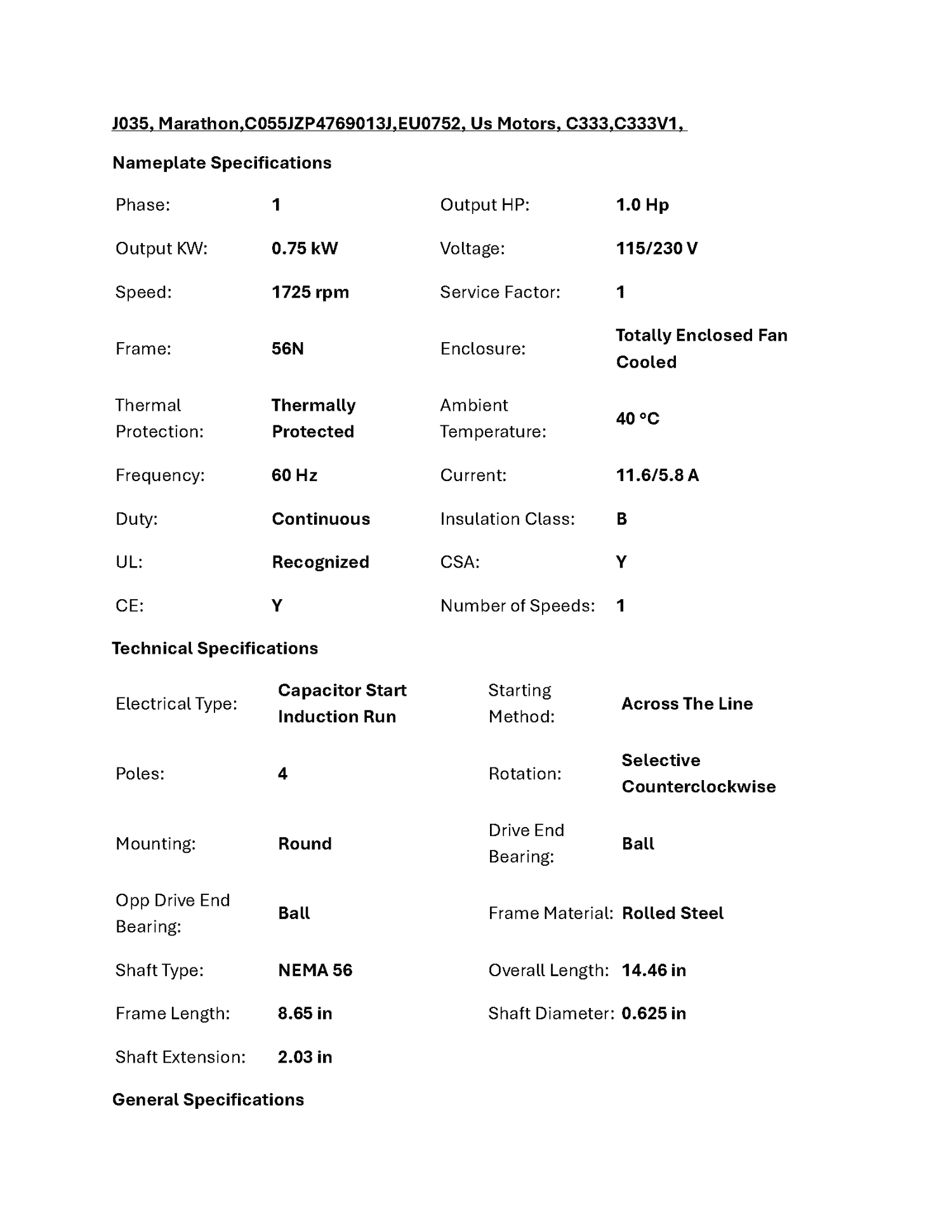

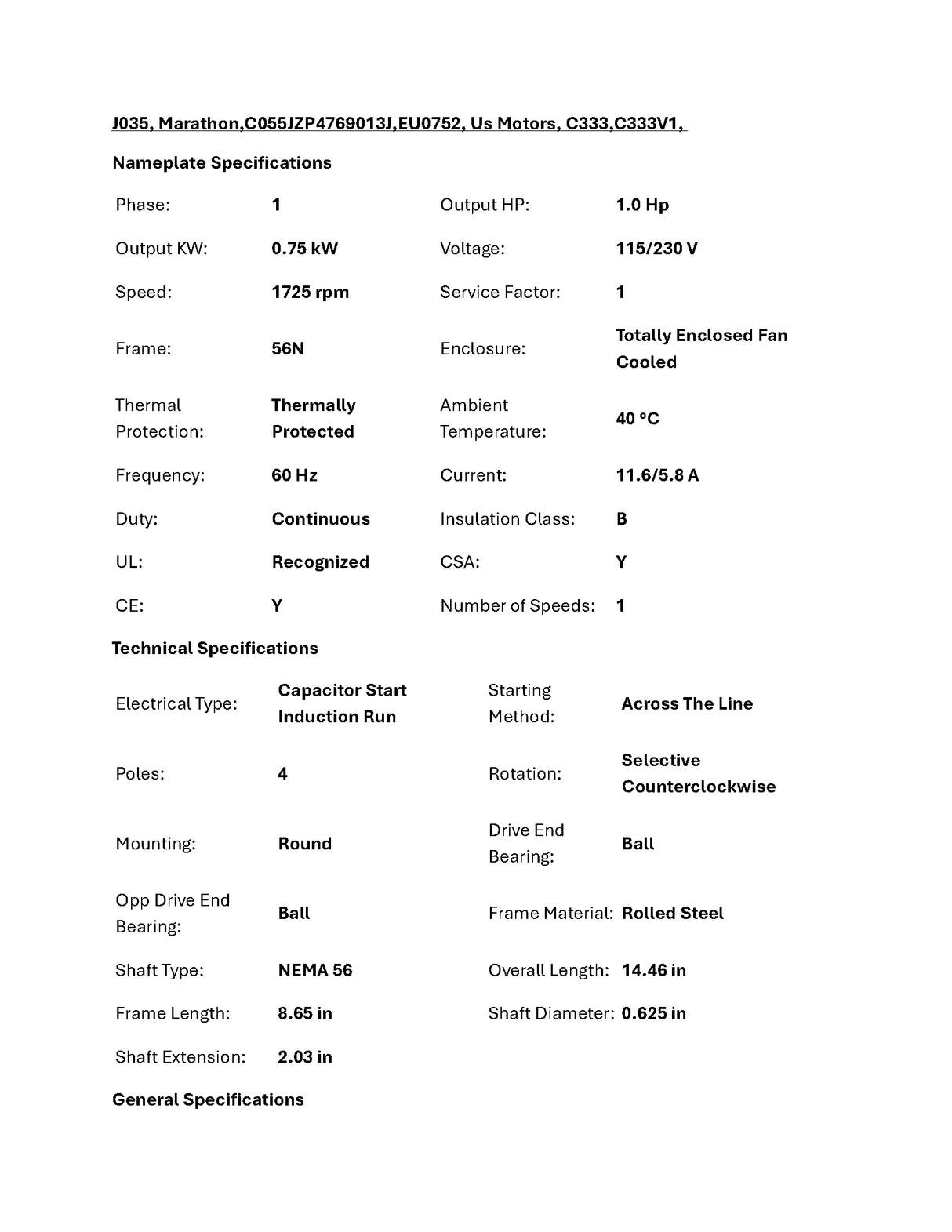

Nameplate Specifications
| Phase: | 1 | Output HP: | 1.0 Hp |
| Output KW: | 0.75 kW | Voltage: | 115/230 V |
| Speed: | 1725 rpm | Service Factor: | 1 |
| Frame: | 56N | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 11.6/5.8 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | Y | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Selective Counterclockwise |
| Mounting: | Round | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 14.46 in |
| Frame Length: | 8.65 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 2.03 in |

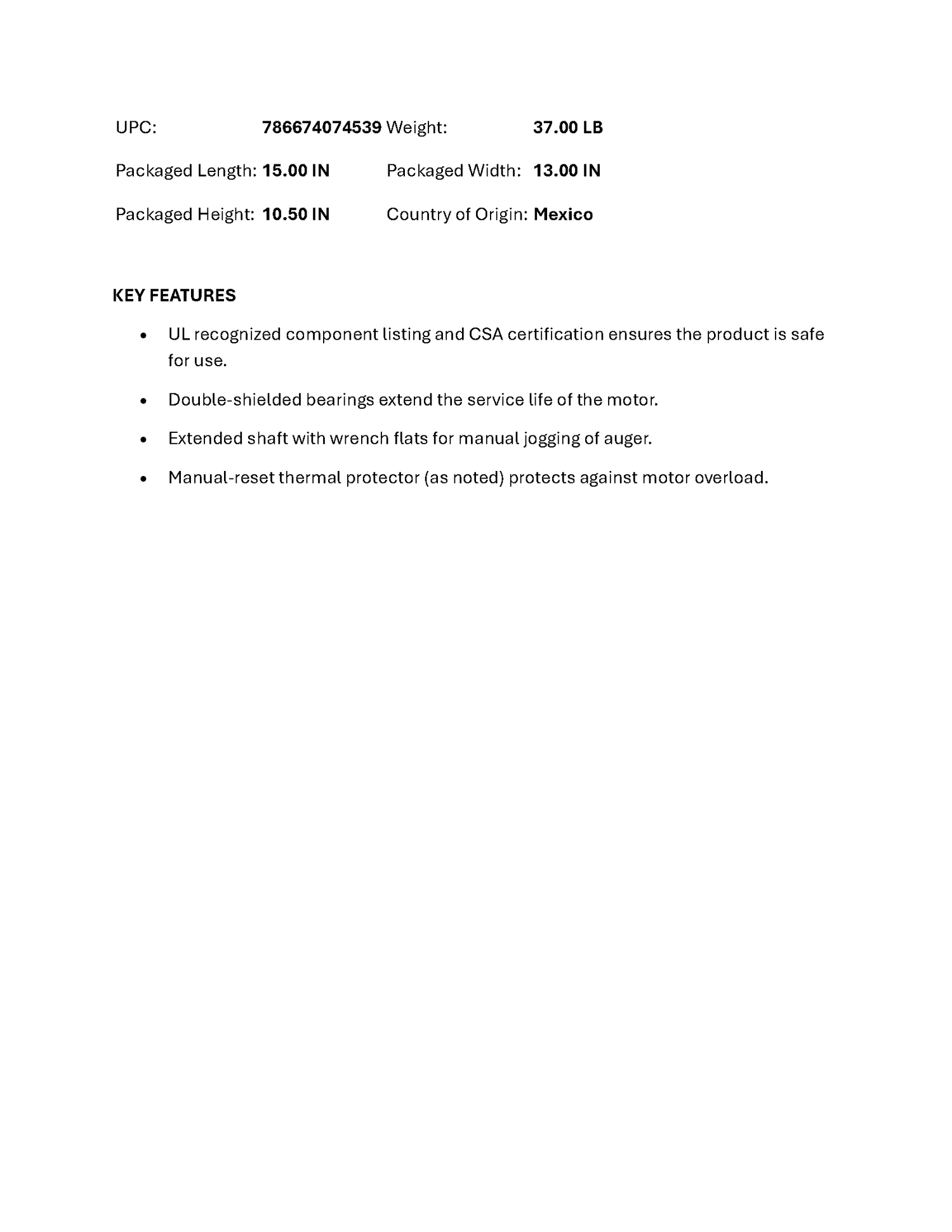

General Specifications
| UPC: | 786674074539 | Weight: | 37.00 LB |
| Packaged Length: | 15.00 IN | Packaged Width: | 13.00 IN |
| Packaged Height: | 10.50 IN | Country of Origin: | Mexico |
KEY FEATURES
- UL recognized component listing and CSA certification ensures the product is safe for use.
- Double-shielded bearings extend the service life of the motor.
- Extended shaft with wrench flats for manual jogging of auger.
- Manual-reset thermal protector (as noted) protects against motor overload.
