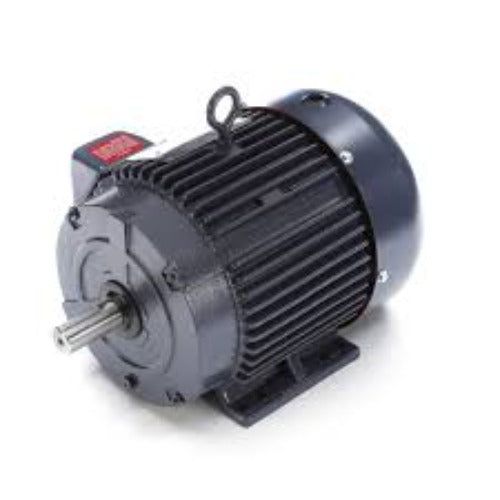

GT1113A, 5 HP, 1800 RPM, 575V, FR:184T Marathon, Fr: 184T, 184TTFC6030, TEFC

MARATHON

$1,225.04

GT1113A, GT1113, 184TTFC6030, Marathon ,

Output HP :	5 Hp	Output KW :	3.7 kW
Frequency :	60 Hz	Voltage :	575 V
Current :	5.0 A	Speed :	1758 rpm
Service Factor :	1.15	Phase :	3
Efficiency :	90.2 %	Duty :	Continuous
Insulation Class :	F	Design Code :	B
KVA Code :	J	Frame :	184T
Enclosure :	Totally Enclosed Fan Cooled	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6206
Opp Drive End Bearing Size :	6205	UL :	Recognized
CSA :	Y	CE :	Y
IP Code :	43

Technical Specifications

Electrical Type :	Squirrel Cage Induction Run	Starting Method :	Across The Line
Poles :	4	Rotation :	Reversible
Mounting :	Rigid Base	Motor Orientation :	Horizontal
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Cast Iron	Shaft Type :	T
Overall Length :	14.80 in	Shaft Diameter :	1.125 in
Shaft Extension :	2.75 in	Assembly/Box Mounting :	F1/F2 CAPABLE
UPC :	722856001634	Weight :	115.00 LB
