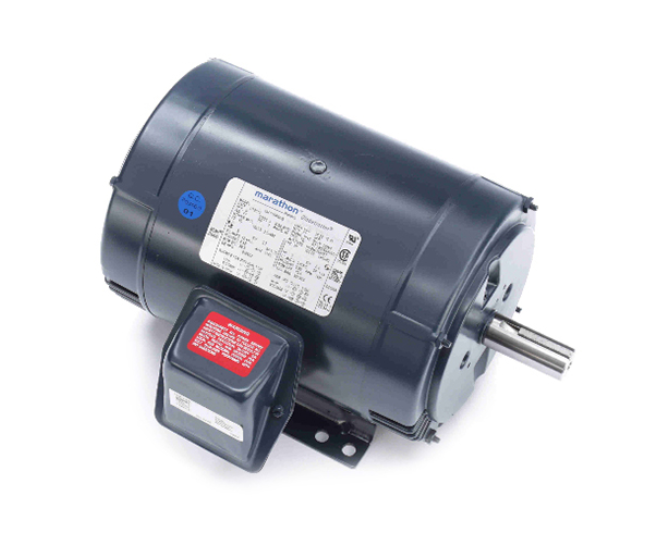

GT0013A, 5Hp, 1800 RPM, 575V, 3PH, 60Hz, Frame 184T, ODP, 184TTDBD6026

GT0013A, 5Hp, 1800 RPM, 575V, 3PH, 60Hz, Frame 184T, ODP, 184TTDBD6026

KEY FEATURES

• Horsepower: 5 HP (3.75 kW)

• Rated Speed: 1800 RPM

• Voltage: 575 V

• Current: 5.3 A

• Phase: 3

• Frequency: 60 Hz

• Poles: 4

• Service Factor: 1.15

• Efficiency: 89.5%

• Frame: 184T

• Enclosure: ODP (Open Drip Proof)

• Mounting: Rigid, Horizontal

• NEMA Design: A

• Insulation Class: F

• Protection Degree: IP22

• Rotation: Reversible

• Shaft Dimensions: 1.125" Diameter × 2.75" Length

• Bearings: 6206 (DE) / 6203 (NDE)

• Certifications: CSA, UL & CE (CSA Class 1 Div 2)

• Warranty: 3-Year
