MARATHON | SKU:
EMN-007062

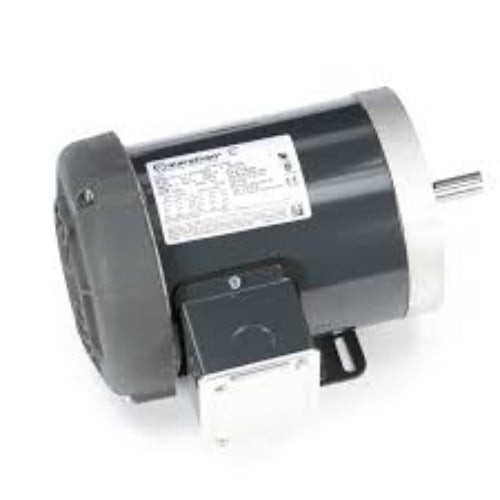

G588, Marathon, 1/2 Hp, 1140 Rpm, 230/460V, FR: 56C, 056T11F5309, TEFC,
Regular price
$610.77
Unit price
/
Unavailable
G588, Marathon, 1/2 Hp, 1140 Rpm, 230/460V, FR: 56C, 056T11F5309, TEFC, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![G588, Marathon, 1/2 Hp, 1140 Rpm, 230/460V, FR: 56C, 056T11F5309, TEFC, - GÉNÉRAL PURPOSE 3 PHASES - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/G588_Marathon.jpg?v=1756479446&width=112)
G588, Marathon, 1/2 Hp, 1140 Rpm, 230/460V, FR: 56C, 056T11F5309, T...
Regular price
$610.77
Unit price
/
Unavailable
Description
Description
G588, Marathon, 056T11F5309,
| Model : | 056T11F5309 | Catalog No : | G588 |
| Part Description : | 1/2,1140,TEFC,56C,3/60/208-230/460 | Category : | Totally Enclosed Fan Cooled (TEFC) |
| Stock : | Yes |
Nameplate Specifications
| Output HP : | 0.50 HP | Output KW : | 0.37 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 2.4-2.7/1.4 A | Speed : | 1140 RPM |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 68 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | L | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 6 | Rotation : | Reversible |
| Mounting : | Bolt-on Base | Motor Orientation : | Horizontal Or Up Or Down |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 11.81 in | Frame Length : | 6.56 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856015716 |
| Weight : | 24.00 LB |
