MARATHON | SKU:
EMN-007059

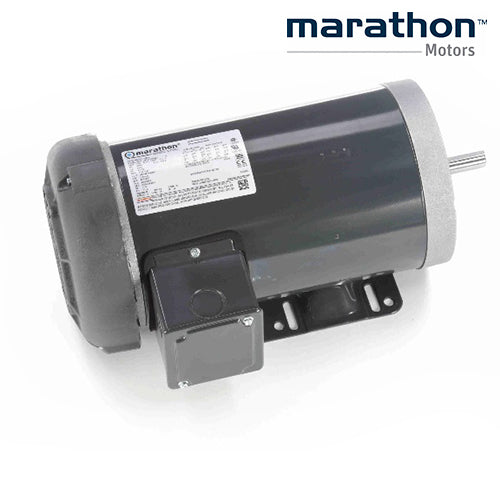

G585A, G585, Marathon, 2 Hp, 1800 RPM, 230/460v, 056T17F15640, FR: 56HC, 056T17F5325, TEFC
Regular price
$762.19
Unit price
/
Unavailable
G585A, G585, Marathon, 2 Hp, 1800 RPM, 230/460v, 056T17F15640, FR: 56HC, 056T17F5325, TEFC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![G585A, G585, Marathon, 2 Hp, 1800 RPM, 230/460v, 056T17F15640, FR: 56HC, 056T17F5325, TEFC - GÉNÉRAL PURPOSE 3 PHASES - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/G585A.jpg?v=1756479690&width=112)
G585A, G585, Marathon, 2 Hp, 1800 RPM, 230/460v, 056T17F15640, FR: ...
Regular price
$762.19
Unit price
/
Unavailable
Description
Description
G585A, G585, MARATHON, 056T17F15640, 056T17F5325,
Nameplate Specifications
| Output HP : | 2 Hp | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 6.0/3.0 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 86.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | N | Frame : | 56HC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Bolt-on Base | Motor Orientation : | Horizontal Or Up Or Down |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 15.15 in | Frame Length : | 9.65 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.87 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 722856051561 |
| Weight : | 48.00 LB |
