MARATHON | SKU:
EMN-007052

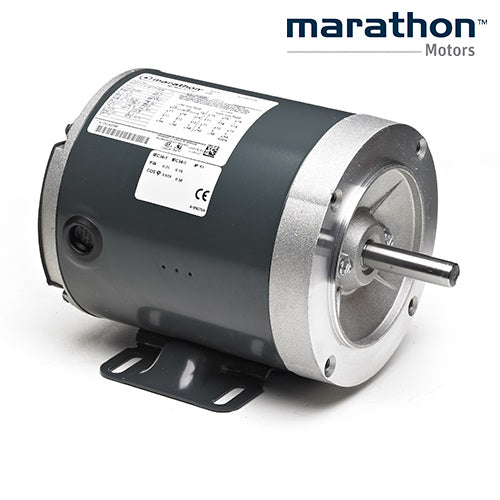

G580, Marathon, 1/3 Hp, 1725 Rpm, 208-230/460V, 056T17T5305, 56C, TENV
Regular price
$455.78
Unit price
/
Unavailable
G580, Marathon, 1/3 Hp, 1725 Rpm, 208-230/460V, 056T17T5305, 56C, TENV is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![G580, Marathon, 1/3 Hp, 1725 Rpm, 208-230/460V, 056T17T5305, 56C, TENV - GÉNÉRAL PURPOSE 3 PHASES - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/G580_MARATHON.jpg?v=1756479456&width=112)
G580, Marathon, 1/3 Hp, 1725 Rpm, 208-230/460V, 056T17T5305, 56C, TENV
Regular price
$455.78
Unit price
/
Unavailable
Description
Description
G580, Marathon, Model 056T17T5305,
General Specifications
| Model : | 056T17T5305 | Catalog No : | G580 |
| Part Description : | 1/3,1725,TENV,56C,3/60/208-230/460 | Category : | Totally Enclosed Non-Ventilated (TENV) |
| Stock : | Yes |
Nameplate Specifications
| Output HP : | 0.33 HP | Output KW : | 0.25 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 1.8-1.6/0.80 A | Speed : | 1725 RPM |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 68 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | N | Frame : | 56C |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Squirrel Cage Inverter Rated | Starting Method : | Line Or Inverter |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Bolt-on Base | Motor Orientation : | Horizontal Or Up Or Down |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 9.93 in | Frame Length : | 6.06 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856015655 |
| Weight : | 20.00 LB |
