G578, Marathon, 1/2 Hp, 1200 Rpm,115-208/230V,Fr:56C,Tefc, 056B11F5303

MARATHON

$765.35

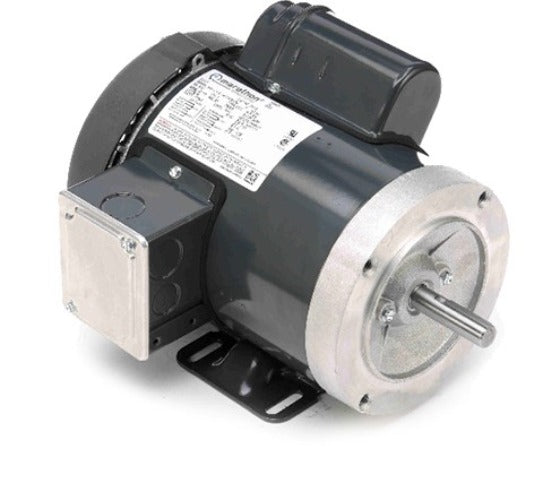

G578, Marathon, Model 056B11F5303

0.50 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	9.6/4.7-4.8 A	Speed:	1140 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	64 %	Power Factor:	56
Duty:	Continuous	Insulation Class:	B
Design Code:	N	KVA Code:	M
Frame:	56C	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and effciency performance.
