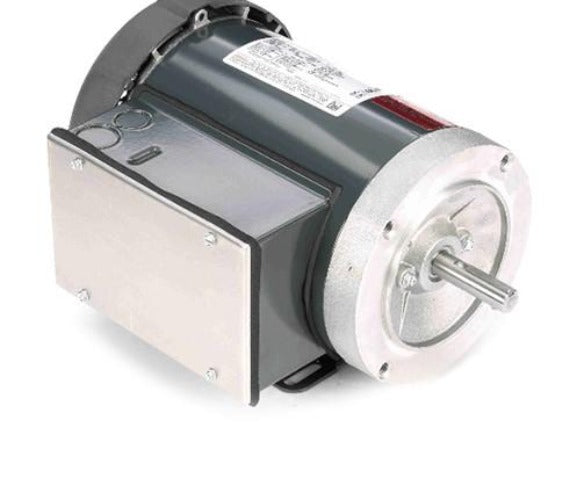

G573, Marathon, 1 HP, 1725 RPM, 115/230 Volts, 056C17F5323, FR:56C

MARATHON

$511.48

G573, Marathon, model 56C17F5323,

1 Hp	Output KW:	0.75 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	13.4/6.8-6.7 A	Speed:	1725 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	72 %	Power Factor:	69.5
Duty:	Continuous	Insulation Class:	B
Design Code:	N	KVA Code:	J
Frame:	56HC	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.
