MARATHON | SKU:
EMN-018249

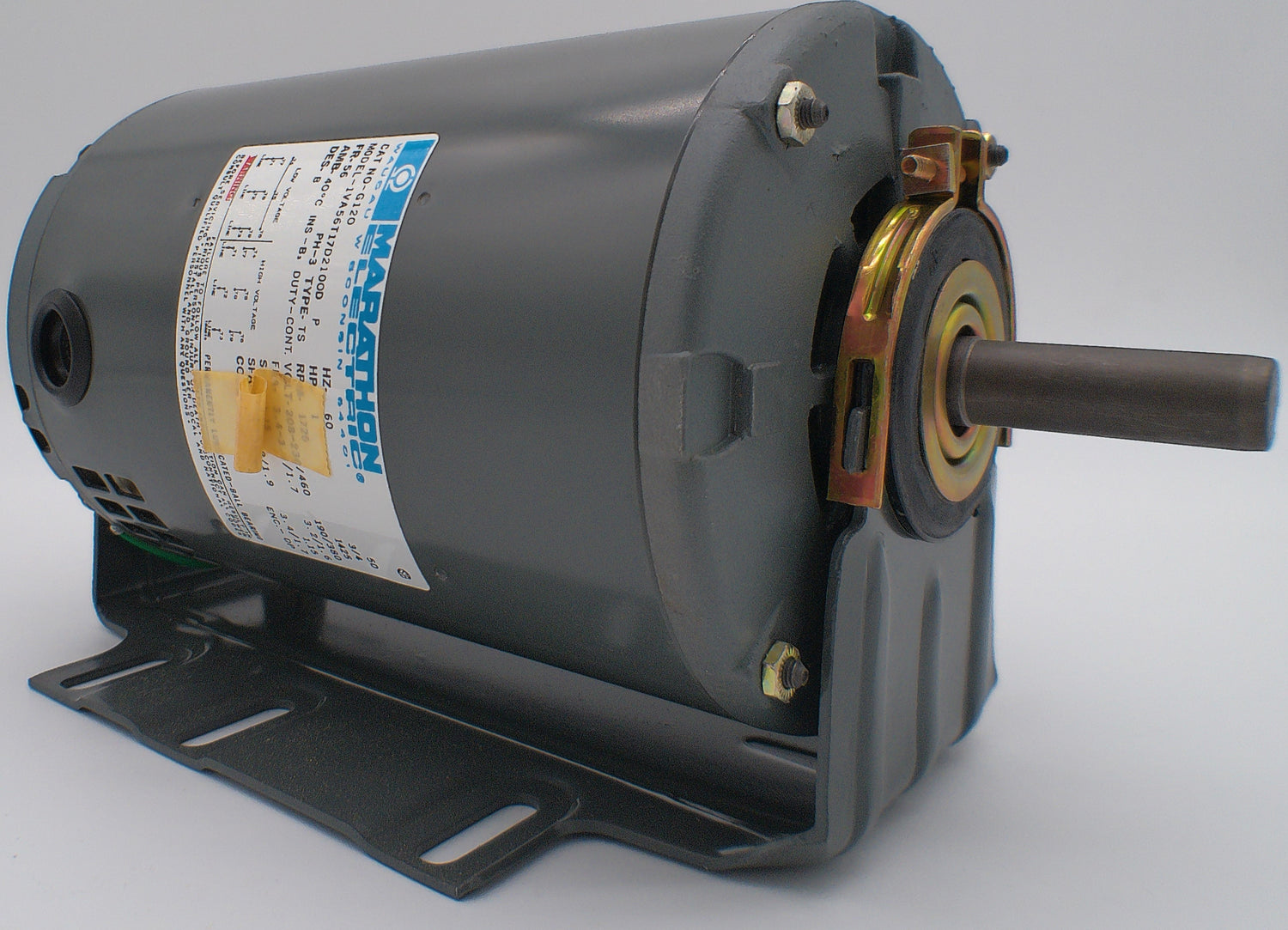

G120, Marathon, 1Hp, 1725 Rpm, 208-230/460 V, fr: 56, Open Drip Proof,
Regular price
$548.18
Unit price
/
Unavailable
G120, Marathon, 1Hp, 1725 Rpm, 208-230/460 V, fr: 56, Open Drip Proof, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
G120, Marathon, 1Hp, 1725 Rpm, 208-230/460 V, fr: 56, Open Drip Proof,
Regular price
$548.18
Unit price
/
Unavailable
Description
Description

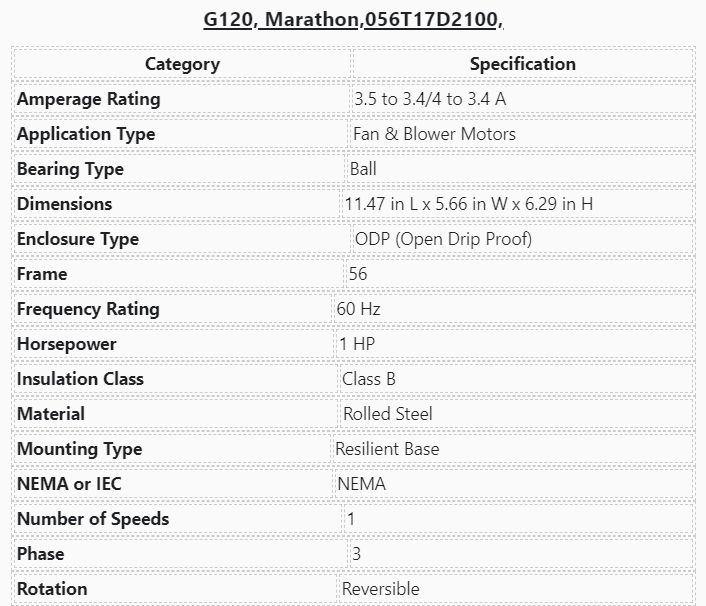

G120, Marathon,056T17D2100,
| Category | Specification |
|---|
| Amperage Rating | 3.5 to 3.4/4 to 3.4 A |
| Application Type | Fan & Blower Motors |
| Bearing Type | Ball |
| Dimensions | 11.47 in L x 5.66 in W x 6.29 in H |
| Enclosure Type | ODP (Open Drip Proof) |
| Frame | 56 |
| Frequency Rating | 60 Hz |
| Horsepower | 1 HP |
| Insulation Class | Class B |
| Material | Rolled Steel |
| Mounting Type | Resilient Base |
| NEMA or IEC | NEMA |
| Number of Speeds | 1 |
| Phase | 3 |
| Rotation | Reversible |

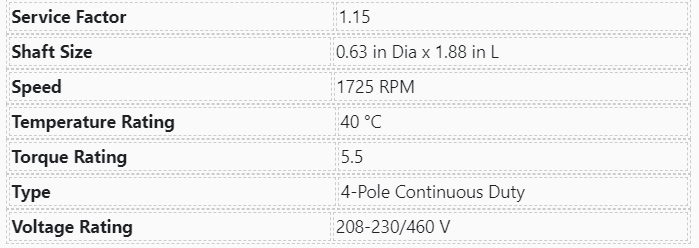

| Service Factor | 1.15 |
| Shaft Size | 0.63 in Dia x 1.88 in L |
| Speed | 1725 RPM |
| Temperature Rating | 40 °C |
| Torque Rating | 5.5 |
| Type | 4-Pole Continuous Duty |
| Voltage Rating | 208-230/460 V |
