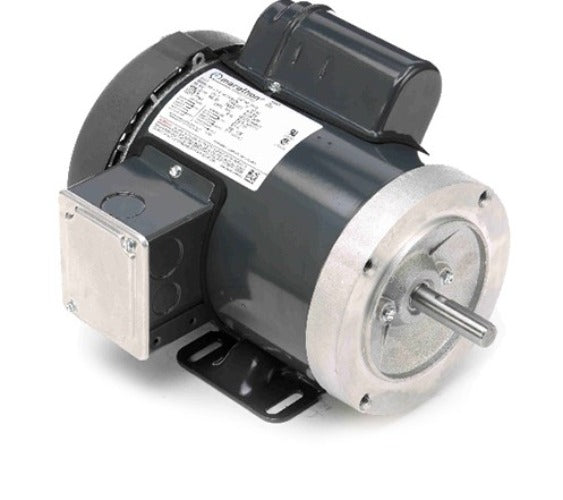

D315, Marathon, 2 Hp, 3450 Rpm, 115/208-230V, 056B34F5327, 56C, TEFC

MARATHON

$737.56

D315, Marathon, Model 056B34F5327,

2 Hp	Output KW:	1.5 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	16.6/9.4-8.3 A	Speed:	3450 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	79 %	Power Factor:	98.3
Duty:	Continuous	Insulation Class:	B
Design Code:	N	KVA Code:	J
Frame:	56HC	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43
