D312, Marathon, 3/4 Hp, 3450 Rpm, 115/208-230V, 056C34F5302, 56C, TEFC

D313, Marathon, 1 Hp, 3450 Rpm, 115/208-230V, 056C34F5303, 56C, TEFC

MARATHON

  • $477.37

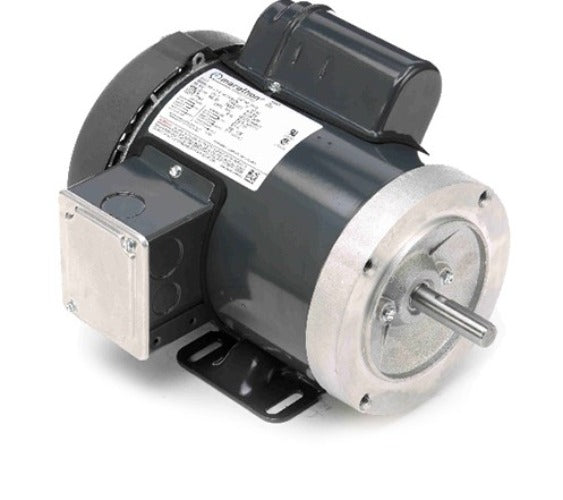

D313, Marathon, 056C34F5303

1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 11.2/5.7-5.6 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 78.5 % Power Factor: 76
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and effciency performance.
