MARATHON | SKU:
EMN-006942

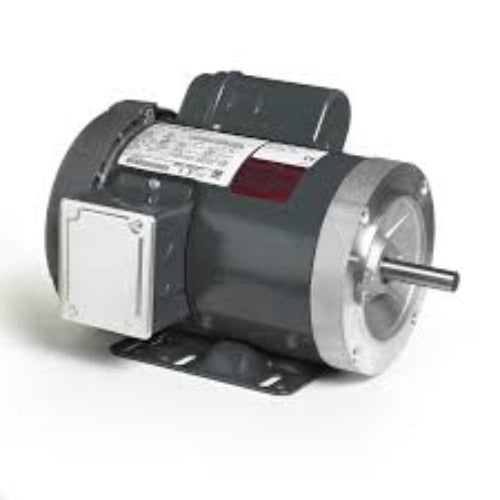

D311, Marathon, 1/2 Hp, 3450 Rpm, 115-208/230V, 056C34F5301, FR: 56C, TEFC
Regular price
$375.00
Unit price
/
Unavailable
D311, Marathon, 1/2 Hp, 3450 Rpm, 115-208/230V, 056C34F5301, FR: 56C, TEFC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![D311, Marathon, 1/2 Hp, 3450 Rpm, 115-208/230V, 056C34F5301, FR: 56C, TEFC - FARM DUTY - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/D311_MARATHON.jpg?v=1756479470&width=112)
D311, Marathon, 1/2 Hp, 3450 Rpm, 115-208/230V, 056C34F5301, FR: 56...
Regular price
$375.00
Unit price
/
Unavailable
Description
Description
D311, Marathon, Model 056C34F5301, Repalace Omnidrive FD142C, MAXOTION, MTR-122FDCH, 102906.00, C4C34FH8, LM24706
Nameplate Specifications
| Output HP : | 0.50 HP | Output KW : | 0.37 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 8.4/4.0-4.2 A | Speed : | 3450 RPM |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 59.5 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | N |
| KVA Code : | N | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Selective Counterclockwise |
| Mounting : | Bolt-on Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 11.81 in | Frame Length : | 6.56 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856009395 |
| Weight : | 22.00 LB |
