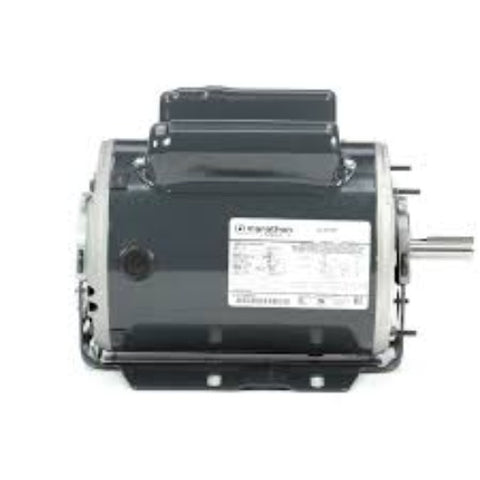

C475, MARATHON, 1 HP-1/3 HP, 115V, 1725/1140 RPM, FR: 56, 5KCR49SN3009

MARATHON

$1,051.39

C475, MARATHON, 5KCR49SN3009

General Specifications

Model :	5KCR49SN3009	Catalog No :	C475
Part Description :	1-1/3,1725/1140,DP,56,1/60/115	Category :	Fan and Blower
Stock :	Yes

Nameplate Specifications

Output HP :	1 Hp	Output KW :	0.75 kW
Frequency :	60 Hz	Voltage :	115 V
Current :	10.8,7.4 A	Speed :	1725 rpm
Service Factor :	1.15	Phase :	1
Efficiency :	70 %	Duty :	Continous
Insulation Class :	B	KVA Code :	J
Frame :	56	Enclosure :	Drip Proof
Overload Protector :	N/R	Ambient Temperature :	40 °C
Drive End Bearing Size :	6203	Opp Drive End Bearing Size :	6203
UL :	Recognized	CSA :	Yes
CE :	N

Technical Specifications

Electrical Type :	Capacitor Start Capacitor Run(CSCR)	Starting Method :	SM
Poles :	4	Rotation :	Selective Counterclockwise
Mounting :	Resilient Base	Motor Orientation :	Any
Drive End Bearing :	BALL	Opp Drive End Bearing :	BALL
Frame Material :	Rolled Steel	Overall Length :	12.01 in
Frame Length :	7.68 in	Shaft Diameter :	0.630 in
Shaft Extension :	1.88 in	Thru-bolts Extension :	0
UPC :	722856048530	Weight :	35.00 LB
