MARATHON | SKU:
EMN-015933

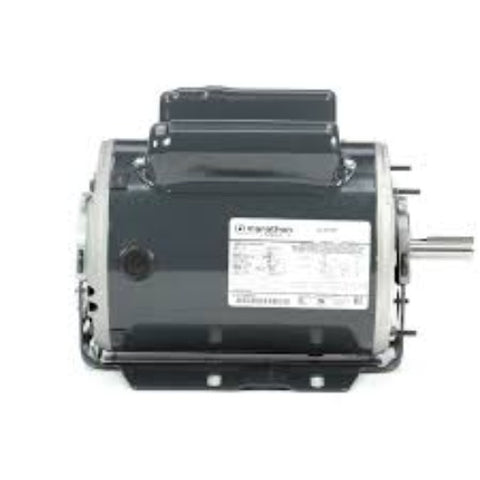

B334, MARATHON, 1 HP-1/3 HP, 115V, 1725/1140 RPM, FR: 56, 056B17D5702
Regular price
$1,037.92
Unit price
/
Unavailable
B334, MARATHON, 1 HP-1/3 HP, 115V, 1725/1140 RPM, FR: 56, 056B17D5702 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![B334, MARATHON, 1 HP-1/3 HP, 115V, 1725/1140 RPM, FR: 56, 056B17D5702 - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/C475_5KCR49SN3009_a0b4ffa6-e2ff-403e-a89d-fb9bf68c36d6.jpg?v=1756479962&width=112)
B334, MARATHON, 1 HP-1/3 HP, 115V, 1725/1140 RPM, FR: 56, 056B17D5702
Regular price
$1,037.92
Unit price
/
Unavailable
Description
Description
B334, 056B17D5702, OBSELETE SEE C475, MARATHON, 5KCR49SN3009
General Specifications
| Model : |
056B17D5702 |
Catalog No : | B334 |
| Part Description : | 1-1/3,1725/1140,DP,56,1/60/115 | Category : | Fan and Blower |
| Stock : | Yes |
Nameplate Specifications
| Output HP : | 1 Hp | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 115 V |
| Current : | 10.8,7.4 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 70 % | Duty : | Continous |
| Insulation Class : | B | KVA Code : | J |
| Frame : | 56 | Enclosure : | Drip Proof |
| Overload Protector : | N/R | Ambient Temperature : | 40 °C |
| Drive End Bearing Size : | 6203 | Opp Drive End Bearing Size : | 6203 |
| UL : | Recognized | CSA : | Yes |
| CE : | N |
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run(CSCR) | Starting Method : | SM |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Resilient Base | Motor Orientation : | Any |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Overall Length : | 12.01 in |
| Frame Length : | 7.68 in | Shaft Diameter : | 0.630 in |
| Shaft Extension : | 1.88 in | Thru-bolts Extension : | 0 |
| UPC : | 722856048530 | Weight : | 35.00 LB |
