MARATHON  |  SKU: EMN-000178

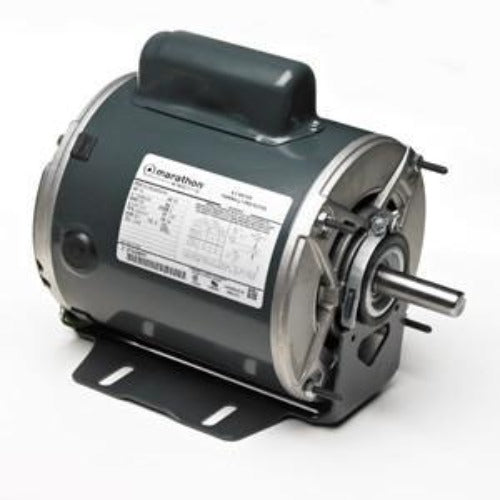

B315, Marathon, 1/3 hp,1725 rpm,115/230V, fr 48Z,48C17D2044,drip proof

$375.57
shipping

Estimate shipping

Description

B315, Marathon, 48C17D2044,

General Specifications

UPC: 722856023155 Weight: 17.00 LB
Packaged Length: 12.44 IN Packaged Width: 9.13 IN
Packaged Height: 8.06 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 5.8/3.1-2.9 A Speed: 1725 rpm
Service Factor: 1.35 Phase: 1
Efficiency: 64 % Power Factor: 60
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: J
Frame: 48Z Enclosure: Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Resilient Base - Extended Studs
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 10.22 in
Frame Length: 6.25 in Shaft Diameter: 0.500 in
Shaft Extension: 1.97 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 10.70 369.0 26.30 164.0 121 2.10 0.0 0.33
Locked-Rotor 10.70 369.0 28.90 181.0 0 2.10 0.0 0.33
Full Load 2.90 100.0 16.00 100.0 1,735 0.39 0.0 0.33
Break-Down 6.30 217.0 38.00 238.0 1,507 1.10 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 135 % 150 % 175 % 200 %
Current (Amps) 2.11 2.19 2.28 2.48 2.90 3.00 3.10 3.13 3.94 5.10
Rated Output (KW) 0.10 0.16 0.23 0.31 0.39 0.48 0.52 0.52 0.71 0.94
Efficiency (%) 0.0 39.1 54.7 61.4 64.0 65.4 65.5 65.4 61.9 53.0
Power Factor (%) 21.2 32.2 43.9 54.5 60.0 69.3 71.2 71.5 77.8 80.1
Speed (RPM) 1,800 1,784 1,771 1,757 1,735 1,724 1,715 1,716 1,671 1,593
Temp. Rise @ FL 0.0 0.0 0.0 0.0 30.0 0.0 62.0 0.0 0.0 0.0
Torque (OZ-FT) 0.00 4.00 8.00 12.00 16.00 20.30 22.06 22.10 29.40 35.20
  • B315,
  • 1/3 HP
  • 1725 RPM
  • 115/208-230 VOLTS
  • 5.8/3.1-2.9 AMPS
  • FRAME 48Z
  • SHAFT 1/2''
  • DRIP PROOF
  • RESILENT BASE
  • REVERSIBLE
  • CAPACITOR START
  • CONTINOUS DUTY
  • BALL BEARING
  • MARATHON ELECTRIC MOTOR
