LITTLE GIANT | SKU:
EMN-018324

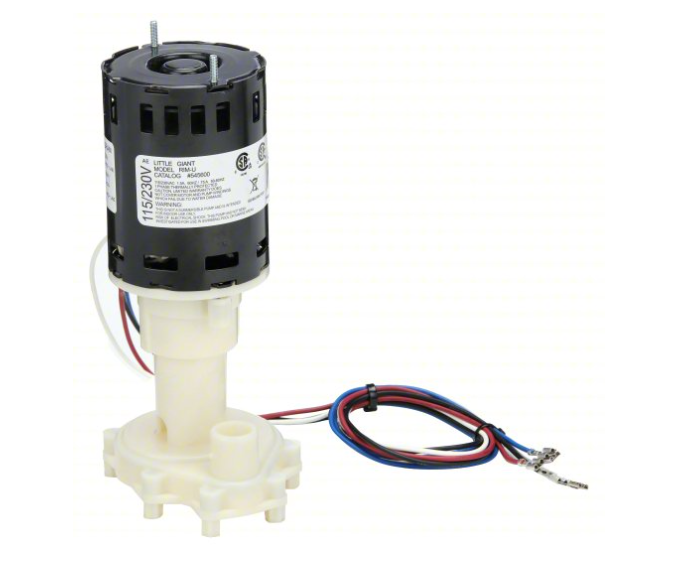

Little Giant,Pump Ice Machine,545600,RIM-U,115/230V,50/60 HZ,1PH,3FT,
Regular price
$190.74
Unit price
/
Unavailable
Little Giant,Pump Ice Machine,545600,RIM-U,115/230V,50/60 HZ,1PH,3FT, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
Little Giant,Pump Ice Machine,545600,RIM-U,115/230V,50/60 HZ,1PH,3FT,
Regular price
$190.74
Unit price
/
Unavailable
Description
Description
Little Giant,Pump Ice Machine,545600,RIM-U,010121107052, NSF/ANSI 372
5 Discharge Adapters
| Caractéristique | Détail |
|---|
| Catalogue Page | N/A |
| Brand | LITTLE GIANT |
| Compatible Discharge Pipe Size | 1/2 in; 5/8 in; 3/4 in; 1 in |
| Wire Lead Length | 3 ft |
| Discharge Adapter Size | 1/2 in; 5/8 in; 3/4 in; 1 in |
| Discharge Type | Barbed |
| Electrical Connection Type | Hardwired |
| Features | Corrosion-Resistant; Moisture Proof Windings; Pump Easily Disassembles for Installing and Servicing |
| Feet of Head (Maximum) | 2 ft |
| Flow Rate (Maximum) | 825 gph |
| For Use With | Potable Systems |
| Frequency | 60 Hz |
| Horsepower | 1/24 hp |
| Impeller Outside Diameter | 1.75 in; 1.83 in; 1.95 in; 2.1 in |
| Includes | (6) Volute Thumb Screws; Impeller Spring; Impeller Thumb Screw |
| Intake Hose or Tube Inside Diameter | 1/2 in; 5/8 in; 3/4 in; 1 in |
| Intake Type | Screened |
| Manufacturer Warranty Length | 1 yr |
| Nameplate Voltage | 115/230V AC |
| Number of Discharge Adapters | 5 |
| Number of Included Impellers | 4 |
| Overall Height | 10.4 in |
| Overall Length | 4.44 in |
| Overall Width | 3.75 in |
| Pump Housing Material | ABS |
| Pump Type | Universal Ice Machine Pump |
| Standards | ANSI 372; CSA Certified; NSF Certified |
| Thermal Overload Protection | Yes |
| Manufacturer Part Number | 545600 |
| UNSPSC |
| Country of Origin | China |
| Feature | Detail |
|---|---|
| Dual Voltage | 115/230 V, 50/60 Hz |
| Horsepower | 1/25 hp, fan-cooled motor |
| Bearings | Upper and lower sealed ball bearings |
| Thermal Protection | Yes |
| Moisture-Proof Windings | Yes |
| Motor Shaft | Corrosion-resistant stainless steel |
| Lead Length | 3 ft, 4-wire leads |
| Pump Design | Easily disassembles for installation and servicing |
| Compatibility with Original Mounting Bracket | Designed to reuse original ice machine OEM pump mounting bracket |
| Multiple Impellers Included | Yes, matches most US-made ice machine OEM water pump specifications |
| Multiple Discharge Adapters Included | Yes, matches most US-made ice machine OEM water pump specifications |
| Discharge Adapter Sizes | 1/2", 5/8", 3/4", 1", plus a “Y” adapter for 5/8" tubing |
