LITTLE GIANT | SKU:
EMN-015610

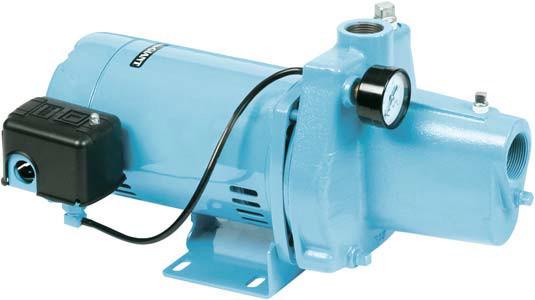

JP-050-C, Shallow Well Jet Pumps, 1/2 HP, 30-50 PSI, 115/230V, 1-1/4" SUCTION, 1"NPT DISCHARGE, LittleGIANT item 558274
Regular price
$807.12
Unit price
/
Unavailable
JP-050-C, Shallow Well Jet Pumps, 1/2 HP, 30-50 PSI, 115/230V, 1-1/4" SUCTION, 1"NPT DISCHARGE, LittleGIANT item 558274 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![JP-050-C, Shallow Well Jet Pumps, 1/2 HP, 30-50 PSI, 115/230V, 1-1/4" SUCTION, 1"NPT DISCHARGE, LittleGIANT item 558274 - Shallow Well Jet Pumps - LITTLE GIANT - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/JP-050-C.jpg?v=1756481031&width=112)
JP-050-C, Shallow Well Jet Pumps, 1/2 HP, 30-50 PSI, 115/230V, 1-1/...
Regular price
$807.12
Unit price
/
Unavailable
Description
Description
APPLICATIONS
- For supplying fresh water to rural homes, farms and cabins
- For installations where the vertical distance from the pump to the pumping water level does not exceed 25 feet (7.6 m)
FEATURES
- Cast iron casing and seal plate for durability and long life
- A.O. Smith higher than standard NEMA service factor dual compartment motor
- Dual voltage 115/230v •
- Square D pressure switch preset at 30-50 PSI
- 1-1/4" (31.7 mm) suction, 1" NPT (25.4 mm) discharge and brass flow control valve
- Pressure gauge included with all models
- Stainless steel motor shaft and dual ball bearings
- Precision-engineered thermoplastic impeller, diffuser, nozzle and venturi
- Clean-out plug to easily unclog nozzle
- Fully serviceable with two-year warranty
| Model Characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1/2 HP | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item # | Model | Total Suction Lift (ft. / m) | Pump Capacity GPM (LPM) Discharge Pressure in PSI | Maximum Pressure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 558274 | JP-050-C | 5 (1.5) | 12.8 (48.5) | 12.5 (47.3) | 12.3 (46.6) | 12.1 (45.8) | 11.2 (42.4) | 9.5 (36) | 6.9 (26.1) | 4.3 (16.3) | 2 (7.6) | 64.2 (4.5kg/cm²) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 10 (3.1) | 11.5 (43.5) | 11.3 (42.8) | 11 (41.6) | 10.8 (40.9) | 10.4 (39.4) | 8.5 (32.2) | 6 (22.7) | 3.4 (12.9) | 1 (3.8) | 62 (4.4kg/cm²) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 15 (4.6) | 9.8 (37.1) | 9.7 (36.7) | 9.6 (36.4) | 9.5 (36) | 9.4 (35.6) | 7.3 (27.7) | 4.7 (17.8) | 2.2 (8.3) | – | 59.9 (4.2kg/cm²) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 20 (6.1) | 8.3 (31.4) | 8.1 (30.7) | 7.8 (29.5) | 7.7 (29.2) | 7.6 (28.8) | 5.7 (21.6) | 3.5 (13.3) | 1 (3.8) | – | 57.7 (4.06kg/cm²) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 25 (7.6) | 5.6 (21.2) | 5.5 (20.8) | 5.5 (20.8) | 5.4 (20.5) | 5.3 (20.1) | 4.1 (15.5) | 2.3 (8.7) | 0.2 (.8) | – | 55.5 (3.9kg/cm²) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
