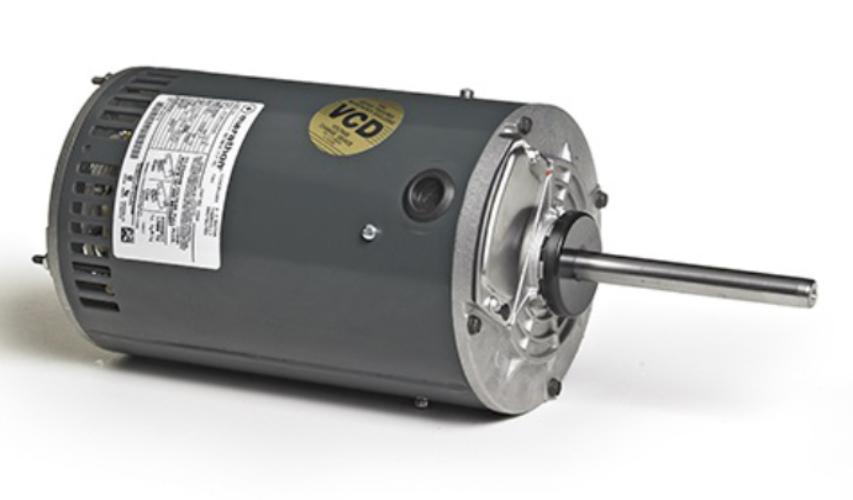

X509, Condenser Fan Motor, 2 & 1.5Hp, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1200 & 1000 RPM, 56Y Frame, OPAO, 56T11O5304H

X509, Condenser Fan Motor, 2 & 1.5Hp, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1200 & 1000 RPM, 56Y Frame, OPAO, 56T11O5304H

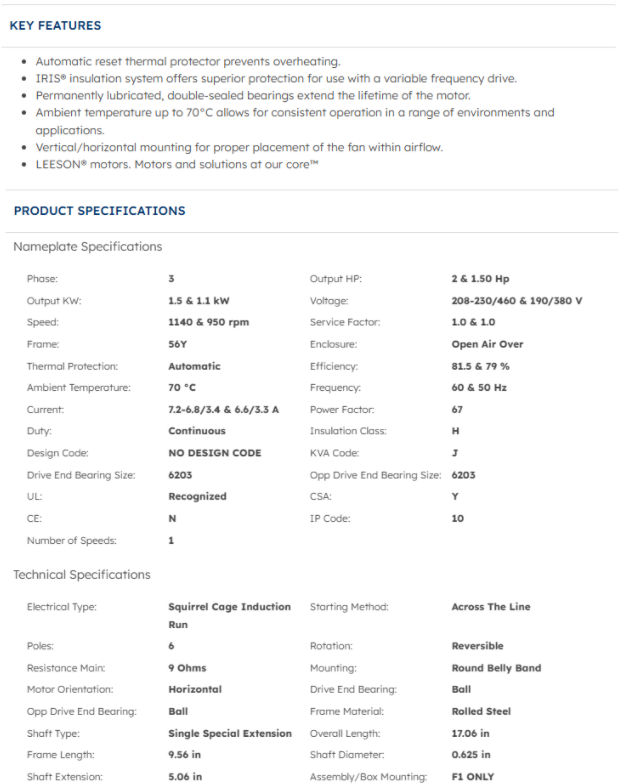

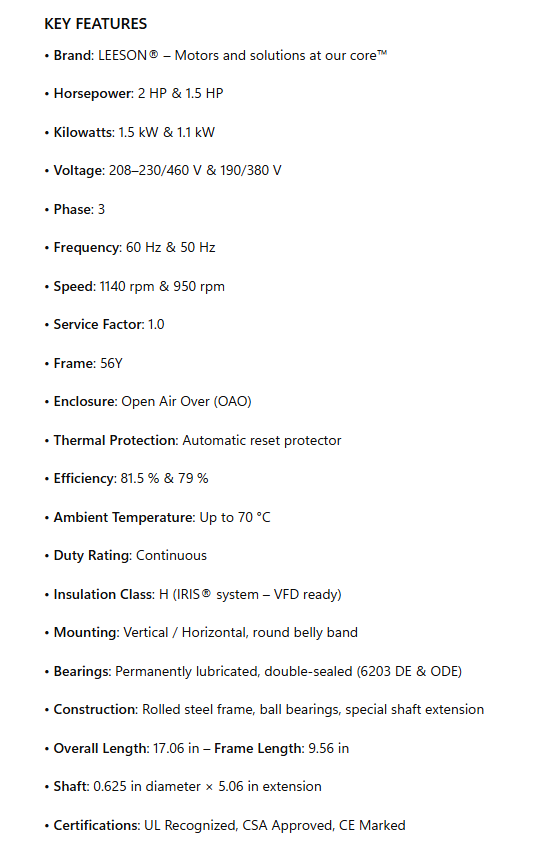

KEY FEATURES

• Brand: LEESON® – Motors and solutions at our core™

• Horsepower: 2 HP & 1.5 HP

• Kilowatts: 1.5 kW & 1.1 kW

• Voltage: 208–230/460 V & 190/380 V

• Phase: 3

• Frequency: 60 Hz & 50 Hz

• Speed: 1140 rpm & 950 rpm

• Service Factor: 1.0

• Frame: 56Y

• Enclosure: Open Air Over (OAO)

• Thermal Protection: Automatic reset protector

• Efficiency: 81.5 % & 79 %

• Ambient Temperature: Up to 70 °C

• Duty Rating: Continuous

• Insulation Class: H (IRIS® system – VFD ready)

• Mounting: Vertical / Horizontal, round belly band

• Bearings: Permanently lubricated, double-sealed (6203 DE & ODE)

• Construction: Rolled steel frame, ball bearings, special shaft extension

• Overall Length: 17.06 in – Frame Length: 9.56 in

• Shaft: 0.625 in diameter × 5.06 in extension

• Certifications: UL Recognized, CSA Approved, CE Marked

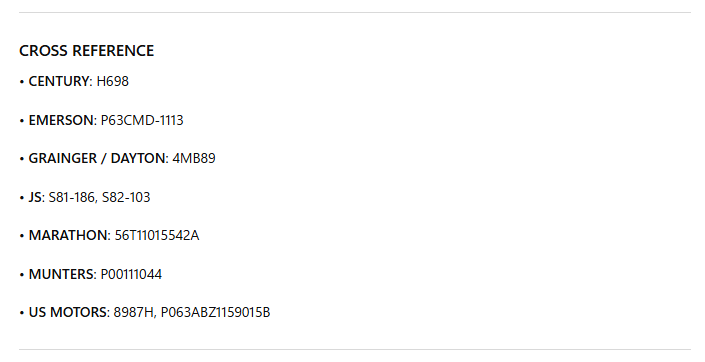

CROSS REFERENCE

• CENTURY: H698

• EMERSON: P63CMD-1113

• GRAINGER / DAYTON: 4MB89

• JS: S81-186, S82-103

• MARATHON: 56T11015542A

• MUNTERS: P00111044

• US MOTORS: 8987H, P063ABZ1159015B
