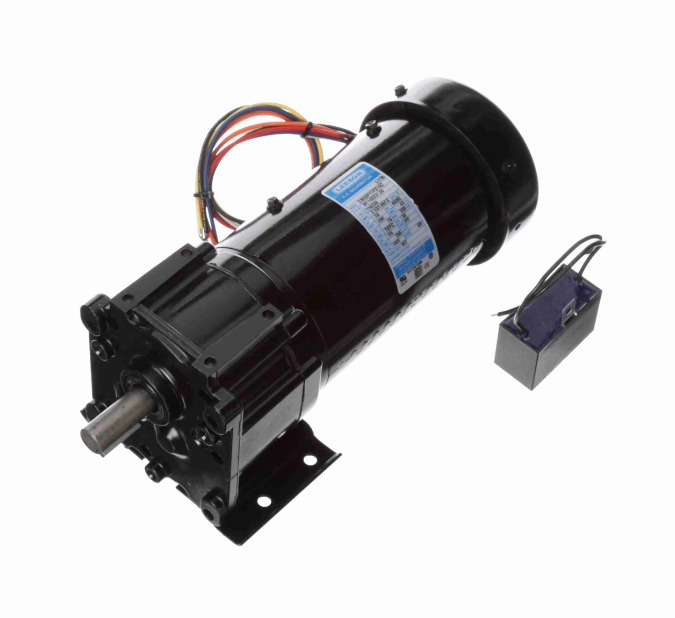

M1145031.00, Parallel Shaft Gearmotor, 0.16Hp, 1 Ph, 60 Hz, 115 V, 30 RPM, 38 Frame, TEFC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
M1145031.00, Parallel Shaft Gearmotor, 0.16Hp, 1 Ph, 60 Hz, 115 V, ...

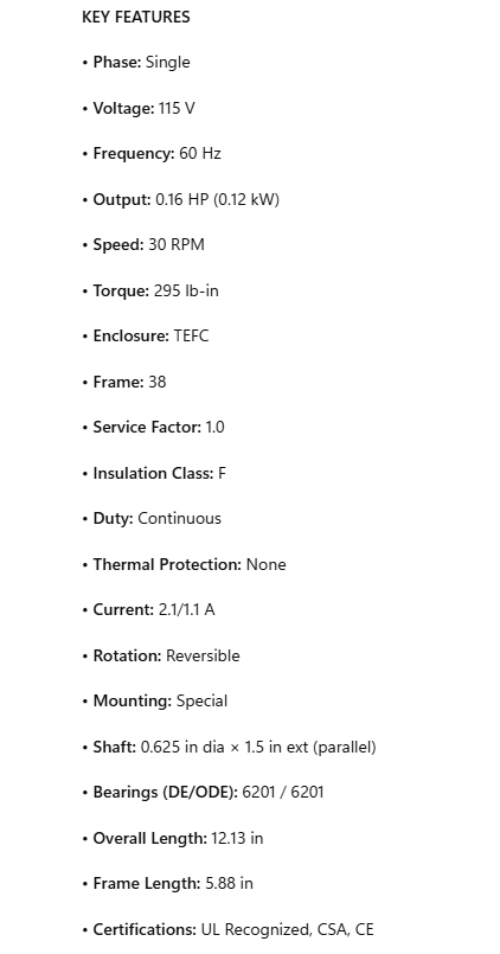

KEY FEATURES
• Phase: Single
• Voltage: 115 V
• Frequency: 60 Hz
• Output: 0.16 HP (0.12 kW)
• Speed: 30 RPM
• Torque: 295 lb-in
• Enclosure: TEFC
• Frame: 38
• Service Factor: 1.0
• Insulation Class: F
• Duty: Continuous
• Thermal Protection: None
• Current: 2.1/1.1 A
• Rotation: Reversible
• Mounting: Special
• Shaft: 0.625 in dia × 1.5 in ext (parallel)
• Bearings (DE/ODE): 6201 / 6201
• Overall Length: 12.13 in
• Frame Length: 5.88 in
• Certifications: UL Recognized, CSA, CE
